2005 Corvette Specifications
2005 Corvette Main Specs
| MODEL: |
2005 Chevrolet Corvette |
| BODY STYLE: |
Two-door Coupe, Convertible, Hard Top front engine, rear wheel drive |
| MANUFACTURING LOCATION: |
Bowling Green, Kentucky |
| VEHICLE NUMBERS (VIN): |
1G1YY24U855100001 thru 1G1YY24U855137341 |
| VIN SUFFIX: |
“ZJA”: 364 CUBIC INCH, 400 HP, AUTO TRANS
“ZJB”: 364 CUBIC INCH, 400 HP, MANUAL TRANS |
| ENGINE BLOCK NUMBER: |
12568952: 364 CUBIC INCH, 400 HORSEPOWER |
| HEAD NUMBER: |
12564243: 364 CUBIC INCH, 400 HORSEPOWER |
2005 Corvette Construction
Composite body, hydroformed steel frame with aluminum & magnesium structural & chassis components.
2005 Corvette Powertrain Specifications
Engine Spec
| Engine |
| Type: |
6.0 LS2 V8 |
| Block Materials: |
Cast Aluminum |
| Displacement: |
6.0 Litre/364 Cubic Inches |
| Bore: |
4 x 3.62 inches |
| Compression Ratio: |
10.9:1 |
| Valvetrain: |
OHV, 2 valves per cyl. |
| Cylinder Head Material: |
Sequential Fuel Injection |
| Fuel Delivery: |
SFI (Sequential Fuel Injection) |
| Horsepower: |
400HP @ 6,000 RPM |
| Torque (lbs.-ft. @ rpm) (auto): |
400 lb-ft @ 4.400 rpm |
| Max. Engine RPM: |
6,500 RPM |
| Bore x stroke (mm.): |
93 Octane |
| Est. MPG (Auto): |
18/26 (City/Hwy) |
| Est. MPG (Manual): |
18/28 (City/Hwy) |
Transmission (Automatic)
| Standard Transmission Spec |
| Type: |
Hydra-Matic 4L65-E |
| Features: |
Four-Speed Automatic, with Performance Algorithm Shifting (PAS) |
| Gear Ratios |
| 1st Gear: |
3.06:1 |
| 2nd Gear: |
1.63:1 |
| 3rd Gear: |
1.00:1 |
| 4th Gear: |
0.70:1 |
| Reverse: |
2.29:1 |
| Axle Ratio: |
2.73:1 (3.15 optional) |
Transmission (Manual)
| Optional Manual Spec |
| Type: |
Tremec T56 6-speed manual |
| Features: |
6-speed manual |
| Gear Ratios |
| 1st Gear: |
2.66:1 |
| 2nd Gear: |
1.78:1 |
| 3rd Gear: |
1.30:1 |
| 4th Gear: |
1.00:1 |
| 5th Gear: |
0.74:1 |
| 6th Gear: |
0.50:1 |
| Reverse: |
2.90:1 |
| Final Drive Ratio: |
3.42:1 |
Transmission (Manual Z51)
| Optional Manual Spec |
| Type: |
Tremec T56 6-speed w/ Z51 Sport Pkg |
| Features: |
6-speed manual |
| Gear Ratios |
| 1st Gear: |
2.97:1 |
| 2nd Gear: |
2.07:1 |
| 3rd Gear: |
1.43:1 |
| 4th Gear: |
1.00:1 |
| 5th Gear: |
0.84:1 |
| 6th Gear: |
0.56:1 |
| Reverse: |
3.28:1 |
| Final Drive Ratio: |
3.42:1 |
2005 Corvette Wheels, Suspension & Brakes
Suspension
| Front Suspension |
| Front Suspension |
Independent; upper and lower A-arms, transverse composite monoleaf spring, tube shock absorbers and antiroll bar. |
| Rear Suspension |
| Rear Suspension |
Independent, upper and lower A-arms, toe links, transverse composite monoleaf springs, tube shock absorbers & anti roll bar. |
Brakes
| Type |
Power Assisted Anti-Lock Disc Brakes |
| Front Brakes |
12.8 in. x 1.26 in rotors, 13.4 in x 1.26 in rotors (Z51 Package) |
| Rear Brakes: |
12.0 in. x 1.00 in rotors, 13.0 in x 1.00 in rotors (Z51 Package) |
Wheels & Tires
| Wheels & Tires |
Coupe/Convertible |
| Front Tires |
P245/45ZR-18 |
| Rear Tires |
P285/35ZR-19 |
Steering
| Steering |
| Type: |
Power-Assisted, Speed-Sensitive, Magnetic, Variable-Effort (MagnaSteer) |
| Ratio: |
16.1:1 |
| Wheel diameter (in.): |
15.0 |
| Turns, Lock to Lock: |
2.66 (Z06 2.46) |
| Turning Diameter, curb-to-curb (ft.): |
39.4 (Z06 42.3) |
| Turning Diameter, wall-to-wall (ft.): |
40.3 (Z06 43.3) |

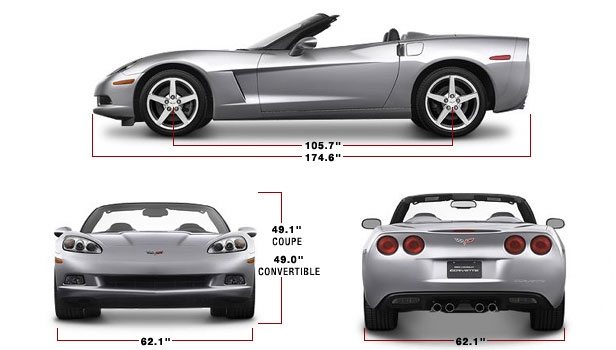

2005 Corvette Exterior Dimensions
Exterior Dimensions
| Exterior Dimensions |
| Model |
Coupe |
Convertible |
| Wheelbase |
105.7 Inches |
105.7 Inches |
| Overall Length |
174.6 Inches |
174.6 Inches |
| Total Body Width |
72.6 Inches |
72.6 Inches |
| Overall Height |
49.0 Inches |
49.1 Inches |
| Front Track Width |
62.1 Inches |
62.1 Inches |
| Rear Track Width |
60.7 Inches |
60.7 Inches |
Interior Dimensions
| Interior Dimensions |
| Model |
Coupe |
Convertible |
| Headroom |
37.9 Inches |
37.9 Inches |
| Shoulder Room |
55.2 Inches |
55.2 Inches |
| Hip Room |
53.7 Inches |
53.7 Inches |
| Leg Room |
43.0 Inches |
43.0 Inches |
Capacities
| Capacities |
| Model |
Coupe |
Convertible |
| Passenger Capacity |
2 – Driver & Passenger |
2 – Driver & Passenger |
| Curb Weight |
3,179 lbs. |
3,199 lbs. |
| Cargo Volume (cu.ft): |
22.4 Cubic Feet |
10.4 Cubic Feet |
| Fuel Capacity (GALLONS) |
18 gallons |
18 gallons |
| Engine Oil Capacity (QTS) |
5.5 (with filter) |
5.5 (with filter) |
| 0-45 MPH: |
3.3 Seconds |
BRAKING 60-0 MPH: |
114.57 Feet |
| 0-60 MPH: |
4.8 Seconds |
SLALOM 6 x 100 FT: |
66.4 MPH |
| 0-75 MPH: |
6.7 Seconds |
SOUND LEVEL AT IDLE: |
68 db (decibles) |
| QUARTER MILE: |
12.90 Seconds @ 109.06 mph |
AT FULL THROTTLE: |
85 db |
| BRAKING 30-0 MPH: |
28.35 Feet |
AT 70 MPH CRUISE: |
76 db |
