1999 Corvette Overview

From its inception in 1953, the Chevy Corvette has always been recognized as a vehicle that was a “step above the common car. Beginning with its earliest Motorama concept, to its first production models and beyond, the Corvette quickly became recognized and universally accepted as “America’s sports car” and, over time, became increasingly synonymous with the American dream – a dream in which every American could aspire to own a house, have 2.5 kids, and afford a sporty, two-seat, convertible coupe.

Model: 1999 Corvette
Generation: C5 Corvette
Type: 2 Door Coupe/Hardtop/Convertible
Available Colors: Arctic White, Light Pewter Metallic, Sebring Silver Metallic,  Nassau Blue Metallic, Navy Blue Metallic, Black, Torch Red, Magnetic Red Metallic
Engine: LS1 346 C.I., 5.7 Litre V8
VIN: 1G1YY12G5X5100001 – 1G1YY22G0X5133283
Transmission: 4-speed automatic (standard), 6 speed manual (optional)
Original Price: $39,171.00 (coupe), $38,777.00 (FRC hardtop), $45,579.00 (convertible)
Units Produced: 33,270
Specs: 1999 Corvette Spec List

Even as it evolved thru the 1960’s and 1970’s, Corvette had remained an obtainable dream for many, though, as technology evolved and the cars became more sophisticated, more powerful, and, well, more sporty, so too did the price tag for the cars increase. Over time, the Corvette became a luxury item that fewer and fewer enthusiasts could readily afford to purchase.  While this helped add an aura of exclusivity to the car, it also caused some within the General Motors corporation to question whether the Corvette franchise was headed down a path where increasing exclusivity might actually bring about an even greater decline in sales.

It was from this concern that actions were put into motion during the early planning phases of the C5 Corvette.  Chevrolet had begun exploring the idea of creating a less-expensive, somewhat-stripped down variant of the C5 coupe that could be marketed as a “budget-conscious” Corvette.  This lower-cost “stipped” model would feature fewer amenities than its coupe and convertible counterparts.  Early considerations included offering manual windows, cloth seats (versus the standard leather available on the other variants of the car), and even smaller wheels and tires.

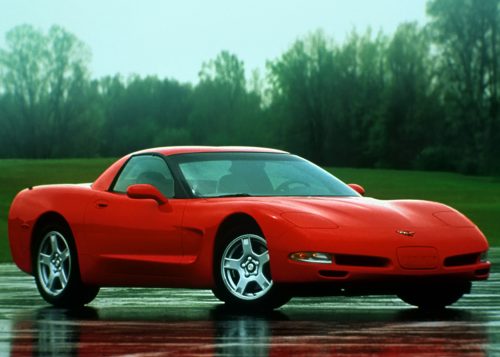

1999 Hardtop Chevrolet Corvette
The 1999 Hardtop Chevrolet Corvette (FRC or “Fixed Roof Coupe”)

During the course of the C5’s development, a few prototypes were manufactured that represented this “no-frills” version of the very successful C5 Corvette.  Surprisingly, when these cars were submitted to GM research clinics and shared with potential customers in test markets, the overall response to this new Corvette was fairly negative.  While a few responded that there was a market for a budget-oriented Corvette, most agreed that developing a “cheaper” version of the very successful C5 would not only hurt sales of the other, more expensive variants, but It would also adversely impact the public’s perception of the Corvette.  It seemed that the exclusivity of Corvette ownership that many within GM feared would hurt sales numbers was actually the thing that helped promote them.

Despite this revelation about their flagship automobile, the concept of producing a “stripped-down” Corvette continued to be an appealing idea for the car’s development and marketing managers.  While sales campaigns would have to be selectively tailored to properly reflect the added benefit of purchasing a no-frills Corvette, it was decided that, for the 1999 model year, Chevrolet would move forward with a new variant of the Corvette – one that would focus on eliminating otherwise “unnecessary” features in favor of producing a performance-enhanced, reduced-weight vehicle.  It was with this notion that the C5 hardtop Corvette was born.

1999 Corvette Hardtop Coupe

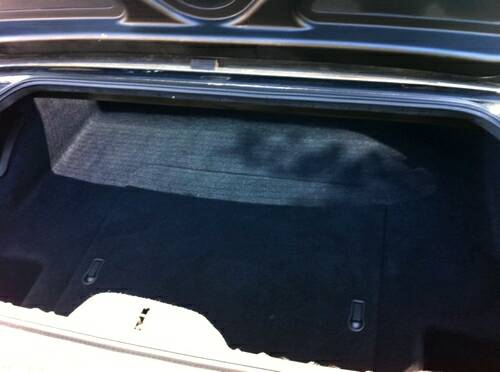

The 1999 Hardtop Coupe included an external trunk.

What would come to be known as the FRC Corvette (Fixed Roof Coupe), the 1999 hardtop was essentially a convertible with a fixed fiberglass roof.  As was indicated during development, the FRC Corvette was cast as a Corvette for serious performance enthusiasts – and there was some truth to this marketing approach.  The hardtop’s stockier construction made the car’s body 12 percent more rigid than the Coupe (even with the Coupe’s targa top in place).

Additionally, this new variant weighed approximately 92 pounds less than the coupe.  This small, but significant, weight reduction combined with the stiffer overall structure of the body, did make the FRC more appealing to performance enthusiasts.  What’s more, the FRC retained the convertible’s external trunk – a feature that many found both useful and appealing.

While GM’s marketing group was selective in advertising the FRC as a “less expensive” variant of the Corvette coupe, it actually was – although only be $394.00.  While the price difference was not significant, it still offered a certain appeal, especially given the fact that the hardtop coupe still included the same 345 horsepower LS1 small-block V-8 engine.  It was also fitted with the same six-speed manual transmission offered with both the coupe and convertible.  While an optional upgrade on the other Corvettes, the six-speed gearbox was the only transmission available for the FRC, and was generally considered to be another price savings benefit when purchasing the hardtop.  Afterall, the coupe and the convertible were only available with a six-speed when it was purchased as an upgrade (at an additional cost).  Another included option was the Z51 Performance Handling suspension which was otherwise an $1165.00 option upgrade on the coupe and convertible.

There were limitations to purchasing the FRC Corvette.  First, the color choices were far more limited than on the other variants.  The only exterior color options available when ordering a hardtop were blue, pewter, red and white.  Moreover, only the base black leather seats were available, and these came installed without any power adjustments.  Whether actually a cost savings approach or a genuine weight reducing decision, it was marketed as the latter.  In addition to the seat motors, other weight increasing options were unavailable on the hardtop including Real-Time Damping suspension and a number of comfort-and convenience items.

Despite these limitations, the overall response to the hardtop Corvette was generally favorable, though the increased performance aspects of the FRC were debatable at best.   In an automotive review performed by Car and Driver magazine, the hardtop’s 0-60 time was compared to that of the coupe, and the difference was 1/10th of a second between the coupe, which made the run in 4.9 seconds, and the hardtop which did in 4.8 seconds.  The same was true for the quarter mile times with the coupe running the quarter mile in 13.3 seconds at a speed of 109 miles per hour compared to the hardtop running it in 13.2 seconds at a speed of 110 miles per hour.    Additional tests demonstrated that the hardtop’s exterior was actually somewhat less aerodynamic than the targa coupe, resulting in a slightly lower top speed of 169 miles per hour to the coupe’s 171 miles per hour.  However, even given the marginal variances between the two cars, Chevy still managed to sell 4,031 hardtops during the 1999 model year – a number that was considered respectable enough by GM to continue production of the FRC for a second year.

 1999 Corvette

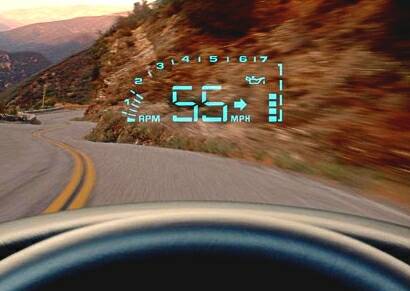

The 1999 Corvette featured a Heads-Up-Display (HUD) that allowed drivers to view speed (and other features) without taking their eyes off the road.

While the hardtop coupe was certainly a major focus of the 1999 model year, there were also a considerable number of new features presented for the targa-top coupe and convertible as well.

One of the most exciting new features offered in 1999 was the “Heads-Up Display” (RPO UV8), a sophisticated and high-tech system that projected the instrument cluster readouts onto the windshield so that the driver could view a compliment of readings – from speed to engine RPMs – without taking their eyes off of the road.  The display appeared in the lower left-hand area of the windshield, right in line with the driver’s line-of-sight.  The display was customizable and included a “check gauges” warning that would indicate when drivers needed to pay attention to a dashboard gauge that was not included as part of the heads up display.  A relatively inexpensive option at $375.00, it quickly became a highly desirable option and was included on a number of 1999 coupes and convertibles.

Another convenience option that was made available on the coupes and convertibles was a Telescoping Steering Column (RPO N37) for an additional $350.00.  This option offered drivers the ability to automatically extend or retract the steering column 20 millimeters of travel in either direction.  This option operated independently of the standard tilt-steering wheel function which remained a manual operation controlled by engaging/disengaging a small lever located on the steering column.  Also returning as an optional upgrade for the coupe and convertible were the Magnesium Wheels option (RPO N73) at an extra cost of $3,000.00.  Lastly, automatic-engaging “Twilight Sentinel” headlamps (RPO T82) were offered, though neither these, the Magnesium Wheels nor the Telescoping Steering Column were made available when ordering a hardtop/fixed roof coupe.

All three variants of the 1999 C5 Corvette received modifications to the car’s magnetically variable power-steering system, which was implemented to make steering more sensitive and reduced the tendency for the car to “wander” when traveling at highway speeds.  Other modifications for all 1999 variants included the introduction of a “next-generation” airbag system that deployed with less force than earlier versions, thereby reducing the severity of airbag-induced injuries sustained in collisions during deployment.

1999 Corvette lineup
The 1999 Corvette lineup included the Coupe, the Convertible and the Hard Top/Fixed Roof Coupe.

Total sales of the 1999 Corvette increased from the previous model year by more than two-thousand units, totaling 33,270 Corvettes in all.  The Hardtop Coupe (FRC) Corvette certainly helped in this department, accounting for 4,031 of the total Corvettes sold that year.  Priced at $38,197.00, the hardtop was certainly the least expensive of the Corvettes that year, though only by a few hundred dollars.  For 1999, coupes sold for $38,591.00 and the convertible sold for $44,999.00.  While Chevrolet’s focus continued to be to increase total units sold, 1999’s production run was certainly respectable – and promising that the Corvette’s long-term future looked increasingly optimistic.

1999 C5-R Race Car
The 1999 model year saw the return of a race-variant Corvette, the C5-R Race Car.

In fact, recognizing Corvette’s successes over the past three years, Chevrolet decided it was time for the Corvette to return to factory backed racing, from which it had been absent since the early 1960’s.  Competing as a production-based sports car, the new C5-R Corvette was developed to compete as a GTS-class race car that maintained the integrity of the production Corvette and shared a number of standard-issue components with it.  These included the stock Corvette frame, engine block, windshield, taillights and marker lights, power steering pump, steering rack, alternator, water pump, and assorted suspension components.  Despite these similarities, the C5-R was approximately four inches wider, had a body produced of carbon-fiber that as only loosely based on the production C5’s body, and featured an engine that produced an additional 255 horsepower over the stock Corvette.

Still, the development of the C5-R race car was a significant milestone for Chevrolet.  It declared unequivocally that the Corvette had found a renewed momentum – both in commercial sales and on the racetrack.  At long last, after years of hardship and dwindling sales, America’s legendary sport car was thriving.

1999 Corvette Awards & Accolades

  • Car and Driver (January 1999): “10 Best Cars”
  • Autoweek (July 5th, 1999) Readers Pick: “America’s Best Car”
  • Kiplinger’s Personal Finance: “Best New Car”  (for Corvette Hardtop, cars over $35,000)
  • Automobile Journalists Association of Canada: “Best New Performance Car” (for Corvette Hardtop)
  • Ward’s Auto World: “10 Best Engines”  (for the LS1 5.7 Liter OHV V8)
  • IntelliChoice: “Best Overall Value of the Year, ‘Corvette 2 Door Coupe, Sport 1999′”
  • As stated by MotorTrend Editors: “Any enthusiast with a drop of oil coursing through his/her veins will be seduced by the magical [1999] Corvette in one short test drive.”

See full 1999 C5 Corvette Image Gallery


1999 Corvette Specifications

1999 Corvette Main Specs

MODEL: 1999 Chevrolet Corvette
BODY STYLE: Two-door Coupe, Convertible, Hard Top front engine, rear wheel drive
MANUFACTURING LOCATION: Bowling Green, Kentucky
VEHICLE NUMBERS (VIN): 1G1YY12G5X5100001 – 1G1YY22G0X5133283
VIN SUFFIX: ZAB: 346 CUBIC INCH, 345 HP, AUTO TRANS
ZAA: 346 CUBIC INCH, 345 HPR, MANUAL TRANS
ENGINE BLOCK NUMBER: 12559846 & 12550592: 346 CUBIC INCH, 345 HP, EARLY PROD
12560621 & 12562174: 346 CUBIC INCH, 345 HP
12560626 & 12559378: 346 CUBIC INCH, 345 HP, LATE PROD
HEAD NUMBER: 12559853: 346 CUBIC INCH, 345 HORSEPOWER

1999 Corvette Construction

  • Full-length perimeter frame with hydroformed frame side rails manufactured out of seamless tubular steel joined by two welded-on bumper beams.
  • The cockpit is framed by a welded cage of aluminum castings and extrusions.
  • Instrument panel cross member includes a magnesium steering column support and magnesium-core steering wheel.
  • Closed Drivetrain tunnel
  • Twin mid-ship mounted composite fuel tanks
  • Aircraft-type composite floor with a balsa wood core
  • One-piece Cast Aluminum front and rear chassis cross members
  • Body panels are constructed of flexible sheet-molded compound (SMC)
  • Quarter panels are bolted to the structure

1999 Corvette Pricing & Options

CODE: DESCRIPTION: QUANTITY: RETAIL PRICE:
1YY07
Base Corvette Sport Coupe
18,078
$39,171.00
1YY37
Base Corvette Hardtop
4,031
$38,777.00
1YY67
Base Corvette Convertible
11,161
$45,579.00
AAB
Memory Package
23,829
$150.00
AG1
Power Driver Seat (Hardtop)
3,716
$305.00
AG2
Power Passenger Seat (Coupe & Convertible)
27,089
$305.00
AQ9
Sport Seats (Coupe and Convertible)
24,573
$625.00
B34
Floor Mats
32,706
$25.00
B84
Body Side Moldings
19,348
$75.00
CC3
Removable Roof Panel, Blue Tint (Coupe)
5,235
$650.00
 C2L Dual Removable Roof Panels (Coupe) 6,307
$950.00
 CJ2 Electronic Dual Zone Air Conditioning
25,672
$365.00
D42
Luggage Shade and Parcel Net (Coupe)
18,058
$50.00
F45
Selective Real Time Damping (Coupe & Convertible)
7,515
$1,695.00
G92
Performance Axle Ratio (3.15 ration) (automatic)
14,525
$100.00
JL4
Active Handling System
20,174
$500.00
MN6
6-Speed Manual Transmission (Coupe & Convertible)
13,729
$825.00
N37
Telescopic Steering, Power (Coupe & Convertible)
16,847
$350.00
N73
Magnesium Wheels
2,029
$3,000.00
T82
Twilight Sentinal (Coupe & Convertible)
18,895 $60.00
 T96  Fog Lamps  28,546 $69.00
 TR9 Lighting Package (Hardtop only)
3,037
$95.00
 UN0 Delco Stereo System with CD
20,442
$100.00
UV6
Head Up Display (HUD)
19,034
$375.00
UZ6
Bose Speaker Package (Hardtop)
3,348
$820.00
U1S
Remote Compact 12-Disc Changer
16,997
$600.00
V49
Front License Plate Frame
17,742
$15.00
YF5
California Emissions
3,336
$170.00
 Z51 Performance Handling Package 4,249
$350.00
 86U
Magnetic Red Metallic Paint (Coupe & Convertible)
2,733
$500.00

1999 Corvette

1999 Corvette Exterior & Interior Colors

Color Options & Quantities

CODE
EXTERIOR COLORS
Coupe Conv FRC Total
INTERIOR COLORS
10
11
13
23
28
41
70
86
Arctic White
Light Pewter Metallic
Sebring Silver Metallic
Nassau Blue Metallic
Navy Blue Metallic
Black
Torch Red
Magnetic Red Metallic
1,466
3,325
2,321
587
919
3,489
4,382
1,569
979
1,799
1,189
245
520
2,519
2,734
1,164
311
1,040
N/A
202
N/A
1,122
1,245
N/A
2,756
6,164
3,510
1,034
1,439
7,235
8,361
2,733
Black, Light Grey, Light Oak, Red
Black, Light Grey, Red
Black, Light Grey, Red
Black, Light Grey, Light Oak
Black, Light Grey, Light Oak
Black, Light Grey, Light Oak, Red
Black, Light Grey, Light Oak
Black, Light Grey, Light Oak

Convertible Top Colors & Quantities

CODE COLOR
TOTAL
16T White 673
41T Black 7,583
67T
Light Oak
2,905

Exterior Colors

1999 Corvette Colors

Interior Colors

1999 Corvette Colors Interior

Seats

1999 Corvette Seats

Wheels

1999 Corvette Wheels

1999 Corvette Engine

1999 Corvette Powertrain Specifications

Engine Spec

Engine
Order Code: LS1
Type: 90 degree V, Front Longitudinal, OHV
Number of Cylinders 8
Displacement (liters/cid): 5.67 / 346
Fuel induction system: Sequential Fuel Injection
Horsepower (SAE net @ rpm): 345 @ 5,600
Torque (lbs.-ft. @ rpm): 350 @ 4,400
Valves per cylinder: 2
Hydraulic roller lifters: Standard
Roller rocker arms: Standard
Bore Spacing (C/L to C/L) 111.8 mm
Bore x stroke (mm.): 99.00 x 92.00
Redline (rpm): 6,000 rpm
 Compression ratio: 10.1:1
Total Dressed Engine Weight Dry (Auto) 208.4 kg
Total Dressed Engine Weight Dry (Manual) 226.1 kg
Firing Order: 18726543
Cylinder Number System (Left Bank): 1-3-5-7
Cylinder Number System (Right Bank): 2-4-6-8
Fuel Required: Unleaded
Fuel Antiknock index (R+M) +2 87
Recommended Fuel: Premium Unleaded

 Engine Materials

Engine Materials
Block: Cast Aluminum
Block Mass: 48.6 kg. (107.1 lbs.)
Block Deck Height: 234.7 mm
Block Length: 519.0 mm
Cylinder Head: Cast Aluminum
Cylinder Head Liner: Cast Iron
Cylinder Head Mass kg (lbs): 9.2 (20.3)
Cylinder Head Volume: 66.9 cubic cm. (4.08 cubic in.)
Head Gasket Thickness 1.33 mm
Intake Manifold: Composite
Intake Manifold Mass: 7.2 kg (15.9 lbs)
Exhaust Manifold: Stainless Steel
Exhaust Manifold Mass: Right; 5.3 kg (11.7 lbs.), Left: 5.2 kg (11.5 lbs.)
Main Bearing Caps:
– Crankshaft: Cast Nodular Iron
– Crankshaft Mass: 23.0 kg (50.7 lbs.)
– Camshaft: Steel
– Camshaft Mass: 4.4 kg (9.7 lbs.)
Connecting Rod: Powder Metal
Connecting Rod Mass: 0.62 kg (1.4 lbs.)
Connecting Rod Length: 154.9 mm
Pistons: Aluminum
Pistons Mass: 44 g (15.5 oz.)

EPA

EPA – Automatic Transmission
City: 17 mpg
Highway: 25 mpg
Max cruising range 478 miles
EPA – Manual Transmission
City: 18 mpg
Highway: 28 mpg
Max cruising range 535 miles
Emissions
Emission Control System Three-Way Catalyst, Air Injection Reaction (AIR), Positive Crankcase Ventilation (PCV)

Transmission (Automatic)

Standard Transmission Spec
Type: Rear Wheel Drive
Order Code: M30
Model: 4L60-E Hydra-Matic Rear-Mounted 4-Speed Automatic w/Overdrive
Gear Ratios
1st Gear: 3.06:1
2nd Gear: 1.63:1
3rd Gear: 1.00:1
4th Gear: 0.70:1
Reverse: 2.29:1
Axle Ratio: 2.73;1 (3.15 optional)
Final Drive Ratio: 1.91:1 (2.21 optional)

Transmission Upshifts

Maximum Upshft Vehicle Speed Drive Range Maximum Kickdown Vehicle Speed Drive Range
1st Gear to 2nd Gear:
2nd Gear to 3rd Gear:
3rd Gear to 4th Gear:
Max. Upshift Engine rpm:
48 mph (77 km/hr)
90 mph (145 km/hr)
146 mph (235 km/hr)
6,000 rpm
4th Gear to 3rd Gear:
3rd Gear to 2nd Gear:
2nd Gear to 1st Gear:
134 mph (216 km/hr)
78 mph (126 km/hr)
38 mph (61 km/hr

Torque Converter

Type:
Torus Design:
Number of Elements:
Max. Ratio at stall:
Type of Cooling:
Nominal Diameter:
Capacity Factor “K”:
Three Element with Converter Clutch
Full function
Three
1.91
Liquid
298 mm
95 (input speed divided by torque squared)

Transmission (Manual)

Optional Manual Spec
Type: Rear Wheel Drive
Order Code: MN6
Model: T56 Borg-Warner Rear-Mounted 6-Speed Manual
Gear Ratios
1st Gear: 2.66:1
2nd Gear: 1.78:1
3rd Gear: 1.30:1
4th Gear: 1.00:1
5th Gear: 0.74:1
6th Gear: 0.50:1
Reverse: 2.90:1
Axle Ratio: 3.42:1
Final Drive Ratio: 1.71:1

Clutch

Clutch Manufacturer: Luk, Inc.
Clutch Type: 297 mm Type – Dry Clutch – Push Type – Single Disk
Linkage: Hydraulic Pre-Filled
Max Pedal Effort (Nominal Spring Load):
– Depressed: 145 N (32.6 lbs.)
– Released: 90 N (20.2 lbs.)
Type Pressure Plate Springs: Diaphragm
Total Spring Load: 11,500 N (Static) (2,584 lbs.)

1999 Corvette Wheels, Suspension & Brakes

Suspension

Front Suspension
Front Suspension Independent SLA Forged Aluminum Upper and Pressure-Cast Lower Control Amrs
Forged aluminum Steering Knuckle
Transverse Monoleaf Spring and Steel Stabilizer Bar
Spindle Offset
Stabilizer bar diameter: Base (19mm), F45 (19mm), Z51 (21.7mm)
Shock absorber diameter: Base (36mm), F45 (28mm), Z51 (45mm)
Rear Suspension
Rear Suspension Independent 5-Link Design with Toe and Camber Adjustment
Cast Aluminum Upper and Lower Control Arms and Knuckle
Transverse Monoleaf Spring
Steel Stabilizer Bar and Tie Rods
Tubular U-Jointed Metal Matrix Composite Driveshafts
Stabilizer bar diameter: Base (19mm), F45 (19mm), Z51 (21.7mm)
Shock absorber diameter: Base (36mm), F45 (28mm), Z51 (45mm)

Brakes

Type Power-Assisted, Four-Wheel Vented Disc
Anti-lock system (Standard) Four Wheel (Bosch ABS V)
Rotor diameter x thickness, front (mm): 12.6 x 1.26
Rotor diameter x thickness, rear (mm): 11.8 x 1.00
Swept area, fr. / rr. (sq. in.): 258 / 158

Wheels & Tires

Wheels & Tires Front Rear
Wheels, size: 17 x 8.5 18 x 9.5
Wheel Type (Standard) Cast Aluminum Cast Aluminum
Wheel Type (Optional) Magnesium (bronze tone) Magnesium (bronze tone)
Number of studs: 5 5
Circle diameter, (inches): N/A N/A
Spare: N/A N/A
Tire, size: P245/45ZR-17 P275/40ZR-18
Tires, manufacturer / type: Extended-Mobility Eagle F1 GS High-Performance Extended-Mobility Eagle F1 GS High-Performance

Steering

Steering
Type: Power-Assisted, Speed-Sensitive, Magnetic, Variable Effort Power Rack and Pinion
Ratio: 16.1:1
Wheel diameter (in.): 15.0
Turns, Lock to Lock: 2.32
Turning Diameter, curb-to-curb (ft.): 41.3

1999 Corvette

1999 Corvette Exterior Dimensions

Coupe Dimensions (Coupe)

1999 Corvette Dimensions - Coupe

Exterior Dimensions (Coupe)

Exterior Dimensions
Model Coupe
Wheelbase 104.5 Inches
Overall Length 179.7 Inches
Total Body Width 73.6 Inches
Overall Height 47.7 Inches
Front Track Width 62.0 Inches
Rear Track Width 62.1 Inches
Ground Clearance 3.7 Inches
Overhang, Front: 38.8 Inches
Overhang, Rear: 35.7 Inches
Trunk Liftover Height: 36.7 Inches

Interior Dimensions (Coupe)

Interior Dimensions
Model Coupe
Headroom 37.8 Inches
Shoulder Room 55.3 Inches
Hip Room 54.2 Inches
Leg Room 42.7 Inches

Convertible Dimensions (Convertible)

1999 Corvette Dimensions - Convertible

Exterior Dimensions (Convertible)

Exterior Dimensions
Model Coupe
Wheelbase 104.5 Inches
Overall Length 179.7 Inches
Total Body Width 73.6 Inches
Overall Height 47.7 Inches
Front Track Width 62.0 Inches
Rear Track Width 62.1 Inches
Ground Clearance 3.7 Inches
Overhang, Front: 38.8 Inches
Overhang, Rear: 35.7 Inches
Trunk Liftover Height: 36.7 Inches

Interior Dimensions (Convertible)

Interior Dimensions
Model Coupe
Headroom 37.8 Inches
Shoulder Room 55.3 Inches
Hip Room 54.2 Inches
Leg Room 42.7 Inches

Coupe Dimensions (Hardtop)

1999 Corvette Dimensions - Hardtop

Exterior Dimensions (Hardtop)

Exterior Dimensions
Model Coupe
Wheelbase 104.5 Inches
Overall Length 179.7 Inches
Total Body Width 73.6 Inches
Overall Height 47.7 Inches
Front Track Width 62.0 Inches
Rear Track Width 62.1 Inches
Ground Clearance 3.7 Inches
Overhang, Front: 38.8 Inches
Overhang, Rear: 35.7 Inches
Trunk Liftover Height: 36.7 Inches

Interior Dimensions (Hardtop)

Interior Dimensions
Model Coupe
Headroom 37.8 Inches
Shoulder Room 55.3 Inches
Hip Room 54.2 Inches
Leg Room 42.7 Inches

Capacities

Capacities
Model Coupe Convertible Hardtop
Passenger Capacity 2 – Driver & Passenger 2 – Driver & Passenger 2 – Driver & Passenger
Curb Weight (Manual) 3,230 lbs. 3,231 lbs. 3,174 lbs.
Curb Weight (Auto) 3,253 lbs. 3,254 lbs. 3,174 lbs.
Interior Passenger Volume (cu.ft): 51.4 Cubic Fee N/A 51.7 Cubic Fee
Interior Trunk Volume (cu. ft): 24.8 Cubic Feet 13.8 Cubic Feet (Top up), 11.1 (Top down) 13.3 Cubic Feet
Fuel Capacity (GALLONS) 19.1 gallons 19.1 gallons 19.1 gallons
Engine Oil Capacity (QTS) 6.0 (with filter) 6.0 (with filter) 6.0 (with filter)
Coolant Capacity (QTS./LITERS) 11.5 quarts, 11.8 w/ manual 11.5 quarts, 11.8 w/ manual 11.5 quarts, 11.8 w/ manual
Battery (CCA): 600 Cold Cranking Amperes 600 Cold Cranking Amperes 600 Cold Cranking Amperes
Coefficient of Drag (cd): 0.29 cd 0.29 cd 0.29 cd
Weight Dist. Front/Rear (%) 52/48 52/48 52/48

1999 Corvette

1999 Corvette Performance Results

PERFORMANCE RESULTS
Coupe Hardtop
0-60 MPH, Manual Trans. (seconds):
Quarter Mile (seconds / mph):
Top Speed (mph):
4.9 sec
[email protected]
171 mph
4.8 sec
13.2 @ 110
169 mph

1999 Corvette

1999 Corvette Vehicle Identification Numbers (VIN)

VIN Range 1G1YY12G5X5100001 – 1G1YY22G0X5133283
1 (First Digit) 1 – United States
G (Second Digit) Manufacturer.  G – General Motors
1 (Third Digit) Manufacturer Division. 1 – Chevrolet
YY (Fourth & Fifth Digits) Carline/Series. YY – Corvette/Coupe
1/2/3 (Sixth Digit) Bodystyle of Car. 1 – Hardtop, 2 – Two Door Hatchback Coupe, 3 – Two Door Convertible
2 (Seventh Digit) Type of Restraint System.  2 – Passive Restraint System.
G (Eighth Digit) Type of Engine. G – LS1: 5.7 Liter, 346CI Engine
5 (Ninth Digit) Check Digit (varies)
X (Tenth Digit) The Model Year. X – 1999
5 (Eleventh Digit) Location of the Assembly Plant. 5 – Bowling Green, Kentucky
1XXXXX (Twelfth thru Seventeenth Digits) Production Sequence Numbers.

The last six digits begin at 100001 and run thru 133283. The pilot and prototype cars were given a VIN number in this VIN series. Each Vehicle Identification Number (VIN) is unique to an individual car.

For all 1999 Corvettes, the Vehicle Identification Number was stamped on a plate on the inner vertical surface of the left windshield pillar visible through the windshield.


1999 Corvette Factory Options

CODE: DESCRIPTION: QUANTITY: RETAIL PRICE:
1YY07
Base Corvette Sport Coupe
18,078
$39,171.00
1YY37
Base Corvette Hardtop
4,031
$38,777.00
1YY67
Base Corvette Convertible
11,161
$45,579.00
AAB
Memory Package
23,829
$150.00
AG1
Power Driver Seat (Hardtop)
3,716
$305.00
AG2
Power Passenger Seat (Coupe & Convertible)
27,089
$305.00
AQ9
Sport Seats (Coupe and Convertible)
24,573
$625.00
B34
Floor Mats
32,706
$25.00
B84
Body Side Moldings
19,348
$75.00
CC3
Removable Roof Panel, Blue Tint (Coupe)
5,235
$650.00
 C2L Dual Removable Roof Panels (Coupe) 6,307
$950.00
 CJ2 Electronic Dual Zone Air Conditioning
25,672
$365.00
D42
Luggage Shade and Parcel Net (Coupe)
18,058
$50.00
F45
Selective Real Time Damping (Coupe & Convertible)
7,515
$1,695.00
G92
Performance Axle Ratio (3.15 ration) (automatic)
14,525
$100.00
JL4
Active Handling System
20,174
$500.00
MN6
6-Speed Manual Transmission (Coupe & Convertible)
13,729
$825.00
N37
Telescopic Steering, Power (Coupe & Convertible)
16,847
$350.00
N73
Magnesium Wheels
2,029
$3,000.00
T82
Twilight Sentinal (Coupe & Convertible)
18,895 $60.00
 T96  Fog Lamps  28,546 $69.00
 TR9 Lighting Package (Hardtop only)
3,037
$95.00
 UN0 Delco Stereo System with CD
20,442
$100.00
UV6
Head Up Display (HUD)
19,034
$375.00
UZ6
Bose Speaker Package (Hardtop)
3,348
$820.00
U1S
Remote Compact 12-Disc Changer
16,997
$600.00
V49
Front License Plate Frame
17,742
$15.00
YF5
California Emissions
3,336
$170.00
 Z51 Performance Handling Package 4,249
$350.00
 86U
Magnetic Red Metallic Paint (Coupe & Convertible)
2,733
$500.00

Base Corvette Sport Coupe (1YY07)

  • The base price of the 1999 Chevrolet Corvette Coupe without any optional equipment.
  • A 346 cubic inch, 345 horsepower, 5.7 liter engine (LS1), 4-speed automatic transmission, removable body-color roof panel, a Delco stereo system with cassette, Bose speaker package, and leather seats were included in the base price.
  • The rear transaxle combined a GM-built, electronically-controlled four-speed automatic transmission with a limited-slip axle built by Getrag.
  • A second-gear select mode was added to automatic transmissions to limit wheel spin on slippery surfaces.
Base Corvette Hardtop (1YY37)
  • The base price of the 1999 Chevrolet Corvette Hardtop without optional equipment.
  • A 346 cubic inch, 345 horsepower, 5.7 liter engine (LS1), 6-speed manual transmission, a Delco stereo system with cassette, Bose speaker package, and leather seats were included in the base price.
  • The Z51 performance handling package.
Base Corvette Convertible (1YY67)
  • The base price of the 1999 Chevrolet Corvette Convertible without optional equipment.
  • A 346 cubic inch, 345 horsepower, 5.7 liter engine (LS1), 4-speed automatic transmission, a retractable soft top, a Delco stereo system with cassette, Bose speaker package, and leather seats were included in the base price.
  • The rear transaxle combined a GM-built, electronically-controlled four-speed automatic transmission with a limited-slip axle built by Getrag.
  • A second-gear select mode was added to automatic transmissions to limit wheel spin on slippery surfaces.
 Memory Package (AAB)
  • Periphery devices memory package.
  • This option “remembered” outside-rear-view-mirror, radio, heater-vent air conditioning control, and power driver seat settings.
  • This option required dual zone air conditioning (RPO CJ2).
Power Driver Seat (AG1)
  • Six-way adjustable power electronic driver’s seat.
  • AG1 is optional for the Hardtop only.
  • AG1 is standard equipment for the base Coupe and Convertible.
Power Passenger Seat (AG2)
  • Optional, six-way, adjustable passenger seat.
  • AG2 was optional for the Coupe and Convertible.
  • AG2 was not available for the Hardtop.
Sports Seats (AQ9)
  • Special sport seats that featured inflatable lumbar support and power-adjusted side bolsters.
  • The sports seats were a new design in 1997 and carried over to the 1998 and 1999 model as well.  They were developed by the Lear Corporation.
  • The sports seat option also required the power passenger seat (AG2) option.
  • The Sport Seats were not available for the Hardtop.
Floor Mats (B34)
  • Color matching, carpeted, driver’s and passenger’s floor mats.
Body Side Moldings (B84)
  • Plastic adhesive moldings that ran from the bodyside coves to the end of the door.
  • These moldings had two pieces per side (one mounting ahead of the door to the front fender, the other mounting directly to the driver and passenger doors respectively), and their thickness tapered from front to rear.
Removable Roof Panel, Blue Tint (CC3)
  • Single piece, transparent, removable glass roof top with blue tint.
  • CC3 was only available for the Coupe.
Dual Removable Roof Panels (C2L)
  • Single piece removable roof top panels – one painted, one tinted glass.
  • The color on the painted panel exactly matched the body color of the car.  The glass panel was tinted blue but remained otherwise transparent, providing the driver with an open feel in the cockpit, even when the panel was in place.
  • CC3 was only available for the Coupe.
Dual Zone Air Conditioning (CJ2)
  • Separate, zone-control, driver’s and passenger’s side A/C thermostats.
  • This option was required when ordering the Memory Package (RPO AAB).
  • CJ2 was not available for the Hardtop.
Luggage Shade and Parcel Net (D42)
  • A thin, fabric cover used to shield the luggage area from exposure.
  • This thin fabric cover attached to the rear hatchback.  If not desired, it could be stored in a separate storage bag (which was included with the Corvette.)
  • D42 was only available for the Coupe.
Selective Real Time Damping, electronic (F45)
  • Electronic ride control system which adjusted ride to existing conditions.
  • Included a driver-adjustable ride control system.
  • This option was not available on Corvettes that were ordered with the Performance Handling Package (RPO Z51).
  • F45 was not available for the Hardtop.
Performance Axle (3.15 Ratio (Automatic)) (G92)
  • Optional performance axle ratio of 3.15:1 with automatic transmission.
  • The standard automatic transmission featured an axle ratio of 2.73:1.  By comparison, the standard transmission model featured a 3.42:1 axle ratio.
Active Handling System (JL4)
  • Automated handling control system.
  • This option  provided additional control in slippery conditions or in extreme handling conditions.
  • The Active Handling System compensated for oversteer or understeer by automatically engaging the vehicle brakes in tandem or to individual wheels as needed.  Throttle control was not affected.
6-Speed Manual Transmission (MN6)
  • An optional, no-cost, 6-speed manual transmission.
  • The rear transaxle combined a Borg-Warner six-speed manual transmission (utilizing a Computer-Aided Gear Selection (CAGS)) with a limited-slip axle built by Getrag.
  • The Hardtop came standard with the 6-speed manual transmission.
Massachusetts/New York Emissions (NG1)
  • Specialized configuration of the emissions system to meet state requirements.
 Telescopic Steering Wheel, Power (N37)
  • Manual tilt power telescoping steering wheel.
  • The steering wheel could be extended or retracted by 20mm.
  • This option requires RPO AAB Memory Package.
  • This option was not available for the Hardtop.
Magnesium Wheels (N73)
  • Optional magnesium wheel package replacing the standard polished aluminum wheels.
Twilight Sentinal (T82)
  • Works with Automatic Exterior Lamp Control and features delayed shutoff of headlamps for exterior illumination after the engine is turned off.
  • T82 was not available for the Hardtop.
Fog Lamps (T96)
  • Optional fog lamps installed in the front radiator air inlets on the front bumper of the C5 Corvette.
Delco Stereo System with CD (UN0)
  • An upgrade from the standard Delco Stereo which featured a compact disc player.
Head Up Display (HUD) (UV6)
  • A sophisticated and high-tech system that projected the instrument cluster readouts onto the windshield so that the driver could view a compliment of readings.
Bose Speaker Package (UZ6)
  • Bose Speakers with amplifiers
Remote Compact 12-Disc Changer (U1S)
  • Remote 12-disc CD player/disc changer (installed in rear storage compartment.
  • This option could be ordered either with the standard Delco Stereo with cassette, or the optional Delco Stereo with CD player (RPO UN0).
Front License Plate Frame (V49)
  • A “U” shaped plastic frame on the front bumper that a second license plate could slip into.
  • This was an appearance item only, and was not required for mounting a front license plate to the C5 Corvette.
California Emissions (YF5)
  • Specialized configuration of the emissions system to meet state requirements.
Performance Handling Package (Z51)
  • Upgraded suspension system for better performance and handling.
  • This option included stiffer springs and stabilizer bars.
  • It required the Performance Axle Ratio (RPO G92) with automatic transmission.
  • It was not made available on vehicles equipped with Selective Real Time Dampening (RPO F45).
Magnetic Red Metallic Paint (86U)
  • This paint option required additional costs.
Notes
  • 1999 saw the addition of the new Corvette Hardtop.  The Corvette Hardtop had a lower starting price than the Coupe and Convertible with less options but also included the Z51 package and the six-speed manual transmission as standard equipment.
  • The steering wheel hardware was revised for better sensitivity and less “play” and “wander” while driving.
  • The Convertible has better rigidity and is stiffer than the previous year model.  This reduced the lateral shake and made for a smoother ride. Over all curb weight was also reduced.
  • The 1999 Corvette has new redesigned airbags that have less force when deployed to protect the driver from injury but still supplemented the lap belts sufficiently.
  • A new sill trim plate was added.

1999 Corvette Recalls

Recall 00v111000

Make: Chevrolet
Model: Corvette
Model Year: 1999
Manufacturer: General Motors Corp.
Mfr’s Report Date: Apr 06, 2000
Nhtsa Campaign Id Number: 00v111000
Nhtsa Action Number: Ea00009
Component: Seat Belts:front
Potential Number Of Units Affected: 71569
Summary: Vehicle Description: Passenger Vehicles. The Lap Belt Webbing Can Twist Allowing The Webbing To Become Jammed In The Retractor.
Consequence: When The Belt Webbing Becomes Jammed In The Retractor, The Seat Belt May Be Unusable.
Remedy: Dealers Will Install Inserts To The Belt Web Guide Of Each Lap Belt Retractor.
Notes: Owner Notification Began November 13, 2000. Owners Who Take Their Vehicles To An Authorized Dealer On An Agreed Upon Service Date And Do Not Receive The Free Remedy Within A Reasonable Time Should Contact Chevrolet At 1-800-222-1020. Also Contact The National Highway Traffic Safety Administration’s Auto Safety Hotline At 1-888-dash-2-dot (1-888-327-4236).

Recall 04v060000

Make: Chevrolet
Model: Corvette
Model Year: 1999
Manufacturer: General Motors Corp.
Mfr’s Report Date: Feb 06, 2004
Nhtsa Campaign Id Number: 04v060000
Nhtsa Action Number: Ea02031
Component: Steering:column Locking:anti-theft Device
Potential Number Of Units Affected: 126624
Summary: On Certain Passenger Vehicles Equipped With Electronic Column Lock Systems (Ecl), When The Ignition Switch Is Turned To “Lock,” The Ecl System Prevents Turning Of The Steering System. When The Vehicle Is Started, The Ecl Unlocks The Steering System. The Vehicle Is Designed So That If The Column Fails To Unlock When The Vehicle Is Started And The Customer Tries To Drive, The Fuel Supply Will Be Shut Off So That The Vehicle Cannot Move When The Vehicle Cannot Be Steered. If Voltage At The Powertrain Control Module Is Low Or Interrupted, However, The Fuel Shut Off May Not Occur And The Vehicle Can Be Accelerated While The Steering System Is Locked. Also When The Control System Shows That The Ecl Is Unlocked And The Vehicle Is Being Driven, The Lock Pin Location Can Vary. Depending On The Location Of The Lock Plate Relative To The Switch Transition Point, There Could Then Be Contact Between The Lock Plate And Pin Causing The Steering To Lock While Driving .
Consequence: If This Occurs, A Crash Could Occur Without Warning.
Remedy: On Vehicles Equipped With An Automatic Transmission, The Dealer Will Disable The Steering Column Lock By Removing The Column Lock Plate. When The Ignition Key Is Removed, The Transmission Shifter Will Lock But The Steering Column Will Not Lock. On Vehicles Equipped With A Manual Transmission, The Dealer Will Reprogram The Powertrain Control Module, Perform A Dimensional Check Of The Column Lock And, If Necessary, Replace The Lock Plate. The Steering Column On These Vehicles Will Continue To Lock When The Key Is Removed. Owner Notification To Owners Of 1997 Vehicles Equipped With Automatic Transmissions Began On April 26, 2004. Owners Of 1998 Through 2004 Vehicles (Except 1997-1998 Manual Transmission Vehicles) Will Be Notified Beginning On August 2, 2004. The Remaining Owners (1997-1998 Manual Transmission Vehicles) Will Be Notified Later In 2004, When Parts Are Available. Owners Should Contact Chevrolet At 1-800-630-2438.
Notes: Gm Recall No. 04006. Customers Can Also Contact The National Highway Traffic Safety Administration’s Auto Safety Hotline At 1-888-dash-2-dot (1-888-327-4236).

Recall 09e012000

Make: Chevrolet
Model: Corvette
Model Year: 1999
Manufacturer: Sabersport
Mfr’s Report Date: Mar 28, 2009
Nhtsa Campaign Id Number: 09e012000
Nhtsa Action Number: N/a
Component: Exterior Lighting
Potential Number Of Units Affected: 16270
Summary: Sabersport Is Recalling 16,270 Combination Corner And Bumper Lamp Assemblies Of Various Part Numbers Sold For Use As Aftermarket Equipment For Various Passenger Vehicles. These Headlamps Fail To Conform To The Requirements Of Federal Motor Vehicle Safety Standard No. 108, “Lamps, Reflective Devices, And Associated Equipment.” These Lamps Do Not Contain The Required Amber Side Reflectors.
Consequence: Decreased Lighting Visibility May Result In A Vehicle Crash.
Remedy: Sabersport Will Notify Owners And Offer A Full Refund For The Noncompliant Combination Lamps. The Safety Recall Began On May 11, 2009. Owners May Contact Sabersport At 1-909-598-7589.
Notes: This Recall Only Pertains To Aftermarket Replacement Equipment And Has No Relation To Any Original Equipment Installed On Vehicles Produced By The Vehicle Manufacturer. In Order To Determine If Your Aftermarket Lamp Assembly Is Affected By This Noncompliance, Please Review The List Of Model Numbers Provided To Us By Sabersport. The List Can Be Found Under “Document Search” Located At The Bottom Of Your Screen. Owners May Also Contact The National Highway Traffic Safety Administration’s Vehicle Safety Hotline At 1-888-327-4236 (Tty 1-800-424-9153), Or Go To Http://www.safercar.gov .

Recall 09e025000

Make: Chevrolet
Model: Corvette
Model Year: 1999
Manufacturer: Dope, Inc.
Mfr’s Report Date: Apr 05, 2009
Nhtsa Campaign Id Number: 09e025000
Nhtsa Action Number: N/a
Component: Exterior Lighting:headlights
Potential Number Of Units Affected: 42540
Summary: Dope, Inc. Is Recalling 42,540 Combination Corner And Bumper Lamp Assemblies Of Various Part Numbers Sold For Use As Aftermarket Equipment For Various Passenger Vehicles. These Headlamps Fail To Conform To The Requirements Of Federal Motor Vehicle Safety Standard No. 108, “Lamps, Reflective Devices, And Associated Equipment.” These Lamps Do Not Contain The Required Amber Side Reflectors.
Consequence: Decreased Lighting Visibility May Result In A Vehicle Crash.
Remedy: Dope, Inc. Will Notify Owners And Offer A Full Refund For The Noncompliant Combination Lamps. The Safety Recall Began On July 28, 2009. Owners May Contact Dope, Inc. At 1-626-272-1798.
Notes: This Recall Only Pertains To Aftermarket Replacement Equipment And Has No Relation To Any Original Equipment Installed On Vehicles Produced By The Vehicle Manufacturer. In Order To Determine If Your Aftermarket Lamp Assembly Is Affected By This Noncompliance, Please Review The List Of Model Numbers Provided To Us By Dope, Inc. The List Can Be Found Under “Document Search” Located At The Bottom Of Your Screen. Owners May Also Contact The National Highway Traffic Safety Administration’s Vehicle Safety Hotline At 1-888-327-4236 (Tty 1-800-424-9153), Or Go To Http://www.safercar.gov.


1999 Corvette Service Bulletins

See full 1999 Corvette Service Bulletins list

Service Bulletins 3850

Make: Chevrolet
Model: Corvette
Model Year: 1999
Manufacturer: General Motors Corp.
Service Bulletin Number: 3850
Nhtsa Item Number: 10019189
Component: Structure:body
Summary: Water Leak In The Rear Compartment Area. *tt

Service Bulletins 3785

Make: Chevrolet
Model: Corvette
Year: 1999
Manufacturer: General Motors Corp.
Service Bulletin Number: 3785
Nhtsa Item Number: 10018625
Component: Exterior Lighting:fog Lights
Summary: Fog Lamps Inoperative. *tt

Service Bulletins 3132

Make: Chevrolet
Model: Corvette
Year: 1999
Manufacturer: General Motors Corp.
Service Bulletin Number: 3132
Nhtsa Item Number: 10010628
Component: Suspension:rear:shock Absorber
Summary: Lower Rear Shock Attaching Bolt May Break After Torqued. *tt

Service Bulletins 3359

Make: Chevrolet
Model: Corvette
Year: 1997
Manufacturer: General Motors Corp.
Service Bulletin Number: 3359
Nhtsa Item Number: 10013549
Component: Suspension:rear
Summary: Lower Rear Shock Attaching Bolt May Break After Torqued. *tt

Service Bulletins 3060

Make: Chevrolet
Model: Corvette
Year: 1999
Manufacturer: General Motors Corp.
Service Bulletin Number: 3060
Nhtsa Item Number: 10009370
Component: Power Train:automatic Transmission
Summary: The Engine Does Not Stall When Performing A P1870 Diagnostic Test With The Tech 2 Scan Tool Or When Commanding The Torque Converter Clutch Enable Solenoid On Applications That Do Not Have The P1870 Diagnostic Test Listed. 4l60e Or 4l65e Transmissions. *tt

See full 1999 Corvette Service Bulletins list


1999 Corvette Common Issues

The following list of common issues is intended for individual reference only, and may not reflect the specific issues of every 1999 Corvette. While the intent of this page is to identify the common issues pertaining to the 1999 Corvette, it is not an all-inclusive list and should be used for reference only.

Mechanical Issues

Leaking Battery

Many C5’s came with AC Delco Freedom batteries that had a tendency to experience exterior cracking near the battery posts. The leaking battery acid drips down the side of the battery, down the funnel-like battery support, straight down onto the PCM and the wiring loom. It can also get onto the A/C lines. In some instances, car crippling damage can occur. Worst case scenario can result in the need to replace the battery, the PCM, and the wiring harness. Additionally, acid corrosion will need to be removed from the frame and the frame repainted to avoid further damage as a result of prolonged exposure to natural elements. In some instances, repairs will need to be made to the air condition lines. It may also require replacing the computer.

Engine

The needle bearings in the OEM rockers have been known to fail. The most common indicators that the engine is experiencing this type of a problem is increased valve train noise and the appearance of needle bearings on a magnetic oil pan drain plug.

Manual Transmission

On manual transmission cars equipped with either an MN6 or M12 transmission, the transmission sounds as if it is chattering/rattling whenever the car begins to accelerate from a complete stop. Despite the foreign nature of the sound, It is completely normal. The sound is the bi-product of the clutch throwout bearing, which creates a ratting sound whenever it is engaged/disengaged. In some instances, the transmission will make a similar, discernable rattling sound when the Corvette ignition is turned on/off. The source of the sound is the same. By depressing the clutch when turning the car on or off, the sound can be eliminated.

The C5 Corvette’s manual transmission shifter can be difficult to get into gear. During normal vehicle operation, it is worth noting that if the shifter is not fully engaged when operating 1st gear or Reverse, it will cause the transmission to literally “pop” out of gear when the clutch is let out. This is not considered the fault of the car by Genera Motors, but the fault of the driver.

Fuel Pump

In all C5 Corvettes, there are two fuel tanks and two fuel pumps. The first fuel pump continually pumps gasoline from the passenger side tank into the driver side tank. This pump is not known to create any type of audible sound. The main fuel pump, which resides directly behind the drivers seat, creates a considerable amount of noise, especially on early model C5 Corvettes. These sounds are normal, and are not an indicator of a failing fuel pump. NOTE: Chevrolet does have a bulletin out instructing Corvette owners how to better insulate against the humming sound of the fuel pump. Additionally, a newer, quieter fuel pump can also be installed.

Braking System

The front brakes of many C5 Corvettes have been known to pulsate during braking conditions. This is the result of warped rotors. The brake rotors developed for the C5 Corvette are known to warp from excessive braking conditions. This does not indicate that the brake rotors require replacement. In many instances, the rotors can simply be turned. However, when inspecting the brake rotors, it is important to observe if the rotors are cracked, as a cracked rotor will require replacement. Cracked rotors are the result of excessive hard braking and could be an indicator of how the car has been driven/maintained.

Exterior Issues

Headlight Bezel Plugs

Old-style headlight bezel plugs, which conceal the bezel mounting hardware, have a tendency to fall off of older C5 Corvettes. To resolve this issue, General Motors released a new style plug that features a twist-lock to prevent the plugs from falling out, but these plugs also require a new headlight bezel. Only the newer style bezels and plugs are available through General Motors and both are compatible with all years of the C5 Corvette.

Hood Rattles

During periods of cold weather, the rubber hood stops have a tendency to rub and chatter against the hood. Proper adjustment and lubrication of the hood stops is known to reduce/eliminate this issue.

Interior Issues

Steering Column

All C5 Corvettes, especially those equipped with a manual transmission, are known to have as have an issue with the steering column locking after ignition is disengaged and remaining locked after vehicle operator starts the vehicle again. In rare instances, it has also been reported that the steering column has locked during vehicle operation. Chevrolet dealerships are able to disable the locking mechanism by replacing the current locking plate with a modified locking plate. At present, this is the only known method to resolve this issue.

Seats

The C5 Corvette seats have several known issues that can occur if improper use and or improper maintenance occurs. Sliding hard across the bolster (the raised/contoured sections of the sitting area on either side of the central seat pad) can break it, causing it to flap from side to side. This area is also the most common area of the seats to experience leather wear/tearing as a result of having the most abrasive contact with the occupant as they enter/exit the vehicle.

The wire springs in the seat bottom, and the bars in the bolsters are sometimes known to wear thru the foam and leather. This situation can be fixed by placing a layer of burlap between the springs and the foam padding.

Another common seat issue often identified with many early C5 Corvettes is that both the driver and passenger seats tend to rock back and forth by about a 1/4″ during hard acceleration and braking. This issue can be repaired, but is not currently identified as an actual issue with General Motors.

Removable Roof

Many C5 Corvette Coupes with the removable roof tend to create a fair amount of wind noise and creaking during normal vehicle operation. While there is no known solution to completely eliminate the wind noise, the creaking can be reduced/eliminated by adding a lubricant to the weatherstriping seal around the roof. A dielectric or petroleum based grease is recommended and will doubly protect the weatherstrip by keeping it from drying out.

Fuel Gauge

In certain instances, some types of gasoline (especially those with a high sulfur content) will cause the fuel gauge to falsely read empty. In some instances, running a fuel system cleaner through the gas tank has been known to resolve this issue.


1999 Corvette Maintenance Schedule

Engine Oil Scheduled Maintenance

Change engine oil and filter as indicated by the GM Oil Life System (or every 12 months, whichever occurs first). Reset the system. The system will show you when to change the oil – usually between 3,000 miles (5,000 km) and 10,000 miles (16,000 km) since your last oil change. Under severe conditions, the indicator may come on before 3,000 miles (5,000 km). Never drive your vehicle more than 10,000 miles (16,000 km) or 12 months without an oil and filter change. Use engine oil meeting the GM Standard GM4718M.

The GM Oil Life System won’t detect dust in the oil. So if you drive in a dusty area, be sure to change your oil and filter every 3,000 miles (5,000 km) or sooner if the CHANGE OIL SOON message appears. Remember to reset the Oil Life Monitor when the oil and filter have been changed. See “GM Oil Life System” (at the bottom of this page) for more information on resetting the system.

Scheduled Maintenance

Every 15,000 Miles (25,000 Kilometers)

Inspect air cleaner filter if you are driving in dusty conditions. Replace filter if necessary.

Every 30,000 Miles (50,000 Kilometers)

Replace Air Cleaner Filter

Every 45,000 Miles (75,000 Kilometers)

Inspect air cleaner filter if you are driving in dusty conditions. Replace filter if necessary.

Every 50,000 Miles (83,000 Kilometers)

Change automatic transmission fluid and filter if the vehicle is mainly driven under one or more of these conditions:

  • In heavy city traffic where the outside temperature regularly reaches 90F (32C) or higher.
  • In hilly or mountainous terrain.
  • Uses such as high performance operation.

If you do not use your vehicle under any of these conditions, change the fluid and filter at 100,000 miles (166 000 km). Manual transmission fluid doesn’t require change.

Every 60,000 Miles (100,000 Kilometers):

Replace air cleaner filter and inspect engine accessory drive belt.

Every 75,000 Miles (125,000 Kilometers):

Inspect air cleaner filter if you are driving in dusty conditions. Replace filter if necessary.

Every 90,000 Miles (150,000 Kilometers):

Replace Air Cleaner Filter

Every 100,000 Miles (166,000 Kilometers):

Replace spark plugs and inspect spark plug wires.

Change automatic transmission fluid and filter if the vehicle is mainly driven under one or more of these conditions:

  • In heavy city traffic where the outside temperature regularly reaches 90F (32C) or higher.
  • In hilly or mountainous terrain.
  • Uses such as high performance operation.

Manual transmission fluid doesn’t require change.

NOTE: If you haven’t used your vehicle under severe conditions listed previously and, therefore, haven’t changed your automatic transmission fluid, change both the fluid and filter. Manual transmission fluid doesn’t require change.

Every 150,000 Miles (240,000 Kilometers):

Drain, flush and refill the cooling system (or every 60 months since last service, whichever occurs first). See “Engine Coolant” in the “1997 Corvette Fluids/Lubricants” chart (in the right margin of this page) for what to use.

Owner Inspection & Service Items

At Each Fuel Fill

NOTE: It is important for you or a service station attendant to perform these underhood checks at each fuel fill.

Engine Oil Level Check: Check the engine oil level and add the proper oil if necessary.

Engine Coolant Level Check: Check the engine coolant level and add DEX-COOL coolant mixture if necessary.

Windshield Washer Fluid Level Check: Check the windshield washer fluid level in the windshield washer tank and add the proper fluid if necessary.

At Least Once a Month

Tire Inflation Check: Make sure tires are inflated to the correct pressures.
Cassette Deck Service (if so equipped): Clean cassette deck. Cleaning should be done every 50 hours of tape play.
Power Antenna Service: Clean power antenna mast.

At Least Twice A Year

Restraint System Check: Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired. Have any torn or frayed safety belts replaced. Also look for any opened or broken air bag coverings, and have them repaired or replaced. (The air bag system does not need regular maintenance.)

Wiper Blade Check: Inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield.

Weatherstrip Lubrication: Silicone grease on weatherstrips will make them last longer, seal better, and not stick or squeak. Apply silicone grease with a clean cloth. During very cold, damp weather more frequent application may be required. (See “Recommended Fluids and Lubricants” in the right margin of this page).

Manual Transmission Check (if so equipped):  Check the transmission fluid level; add if needed. (See “Manual Transmission Fluid” in the right margin of this page). Check for leaks. A fluid leak is the only reason for fluid loss. Have the system inspected and repaired if needed.

Automatic Transmission Visual Inspection: It is not necessary to check the transmission fluid level during a visual inspection of the actual transmission. A transmission fluid leak is the only reason for fluid loss. Check for leaks. If a leak occurs, take the vehicle to your Chevrolet dealership service department and have it repaired as soon as possible.

At Least Once A Year

Key Lock Cylinder Service: Lubricate the key lock cylinders.

Body Lubrication Service: Lubricate all body door hinges. Also lubricate all hinges and latches, including those for the hood, rear compartment, console door and any folding seat hardware. More frequent lubrication may be required when exposed to a corrosive environment.

Starter Switch Check:  CAUTION: When you are doing this check, the vehicle could move suddenly. If it does, you or others could be injured. Before you start, be sure you have enough room around the vehicle. Firmly apply the parking brake and the regular brake.

On automatic transmission vehicles, try to start the engine in each gear. The starter should work only in PARK (P) orNEUTRAL (N). If the starter works in any other position, your vehicle needs service.

On manual transmission vehicles, put the shift lever in NEUTRAL (N), push the clutch down halfway and try to start the engine. The starter should work only when the clutch is pushed down all the way to the floor. If the starter works when the clutch isn’t pushed all the way down, your vehicle needs service.

Automatic Transmission Shift Lock Control System Check: CAUTION: When you are doing this check, the vehicle could move suddenly. If it does, you or others could be injured. Before you start, be sure you have enough room around the vehicle. It should be parked on a level surface. Firmly apply the parking brake. (NOTE: Be prepared to apply the parking brake immediately if the vehicle begins to move.)

With the engine off, turn the key to the ON position, but don’t start the engine. Without applying the regular brake, try to move the shift lever out of PARK (P) with normal effort. If the shift lever moves out of PARK (P), your vehicle needs service.

Ignition Automatic Transmission Lock Check: While parked, and with the parking brake set, try to turn the ignition key to OFF in each shift lever position. The key should turn to OFF only when the shift lever is in PARK (P).

On all vehicles, the key should come out only in OFF. Parking Brake and Automatic Transmission PARK (P) Mechanism Check: CAUTION: When you are doing this check, your vehicle could begin to move. You or others could be injured and property could be damaged. Make sure there is room in front of your vehicle in case it begins to roll. Be ready to apply the regular brake at once should the vehicle begin to move.

Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular brake, set the parking brake.

To check the parking brake’s holding ability: With the engine running and transmission in NEUTRAL (N), slowly remove foot pressure from the regular brake pedal. Do this until the vehicle is held by the parking brake only.

To check the PARK (P) mechanism’s holding ability: With the engine running, shift to PARK (P). Then release the parking brake followed by the regular brake

Underbody Flushing Service: At least every spring, use plain water to flush any corrosive materials from the underbody. Take care to clean thoroughly any areas where mud and other debris can collect.

Dealership Inspection & Service Items

At Least Twice A Year

Steering and Suspension Inspection: Inspect the front and rear suspension and steering system for damaged, loose or missing parts, signs of wear or lack of lubrication. Inspect the power steering lines and hoses for proper hook-up, binding, leaks, cracks, chafing, etc.

Tire and Wheel Inspection: Inspect the tires for uneven wear or damage. If there is irregular or premature wear, check the wheel alignment. Inspect for damaged wheels.

Exhaust System Inspection: Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken, damaged, missing or out-of-position parts as well as open seams, holes, loose connections or other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes into the vehicle.

Engine Cooling System Inspection: Inspect the hoses and have them replaced if they are cracked, swollen or deteriorated. Inspect all pipes, fittings and clamps; replace as needed. Clean the outside of the radiator and air conditioning condenser. To help ensure proper operation, a pressure test of the cooling system and pressure cap is recommended at least once a year.

Rear Axle Service: Check the gear lubricant level in the rear axle and add if needed. A fluid loss may indicate a problem. Check the axle and repair it if needed.

Brake System Inspection: Inspect the complete system. Inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chafing, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect other brake parts, including calipers, parking brake, etc. You may need to have your brakes inspected more often if your driving habits or conditions result in frequent braking.

GM Oil Life System

Your vehicle has a computer that lets you know when to change your engine oil. This is not based on mileage, but on engine revolutions and engine operating temperature. When the computer has calculated that the oil needs changing, the GM Oil Life System will indicate that a change is necessary. The mileage between oil changes will vary depending on how you drive your vehicle — usually between 3,000 miles (5 000 km) and 10,000 miles (16 000 km) since your last oil and filter change. Under severe conditions, the system may come on before 3,000 miles (5 000 km). Never drive your vehicle more than 10,000 miles (16 000 km) or 12 months (whichever occurs first) without an oil change. Use engine oil meeting the GM Standard GM4718M.

The system won’t detect dust in the oil. So, if you drive in a dusty area, be sure to change your oil and filter every 3,000 miles (5 000 km) or sooner if the CHANGE OIL SOON message appears. Remember to reset the system whenever the oil is changed.

How to Reset the Change Oil Soon Message

To reset the CHANGE OIL SOON message after an oil change, do the following:
1. Turn the ignition to ON and with the engine off.
2. Press the TRIP button so the OIL LIFE percentage is displayed.
3. Press RESET and hold for two seconds. OIL LIFE REMAIN 100% will appear.





Source Material:

  1. The Pocket Book of the Corvette: The Definitive Guide to the All American Sports Car – Copyright 2003, Barnes & Noble
  2. CORVETTE: Sports Car Superstar – Copyright 2005, PIL – Publications International, Ltd.
  3. Corvette Black Book – Copyright 2009, Michael Bruce Associates, Inc.
  4. The Complete Book of Corvette, Every Model Since 1953 – Copyright 2005, Mike Mueller – MBI Publishing

No Comment

Leave a reply

Your email address will not be published. Required fields are marked *
