1995 COrvette

1995 Corvette Performance & Specifications

Powertrain, Steering, Brakes, Dimensions, & Suspension

Last updated:

Even with eleven years already behind it, the C4 Corvette still managed to receive the accolades of enthusiasts and critics alike.  It received praise for its jaw-dropping acceleration and equally for its intense road grip and superior handling.  However, with the announcement that an all-new, fifth generation Corvette was under development and on track for the 1997 model year, there were few who were surprised by Chevrolet’s decision to make minimal changes to the existing C4 Corvette coupe and convertible and to completely eliminate the ZR-1 early in the 1995 production year.

Read More: 1995 Chevrolet Corvette Research Center

1995 Corvette Specifications

1995 Corvette Main Specs

MODEL: 1995 Chevrolet Corvette
BODY STYLE: Two-door Coupe/Hatchback, front engine, rear wheel drive
MANUFACTURING LOCATION: Bowling Green, Kentucky
CONSTRUCTION: Integral Perimeter Frame – Birdcage Forms Strong Unitized Body Structure. Aerodynamically shaped body with deeply angled windshield (64 deg.). All major body panels SMC reinforced composite with moled-in coating. Single lift off roof panel (Coupe) effective pass; compartment insulation, tinted glass all around. “Unibase” paint process, final clear coat finish.
VEHICLE NUMBERS (VIN): 1G1YY22P7S5100001 – 1G1YY22P7S5120294 (Corvette Coupe & Convertible)
1G1YZ22J0S5800001 – 1G1YZ22J0S5800448 (ZR-1 Corvette)
VIN SUFFIX: ZUC: 350 CUBIC INCH, 300 HORSEPOWER, AUTOMATIC TRANSMISSION
ZUD: 350 CUBIC INCH, 405 HORSEPOWER, MANUAL TRANSMISSION
ZUF: 350 CUBIC INCH, 300 HORSEPOWER, MANUAL TRANSMISSION
ENGINE BLOCK NUMBER: 10125327: 350 CUBIC INCH, 300 HORSEPOWER
10199001: 350 CUBIC INCH, 405 HORSEPOWER
HEAD NUMBER: 10174390: 350 CUBIC INCH, 405 HORSEPOWER (RIGHT HAND) (EARLY PRODUCTION)
10207643: 350 CUBIC INCH, 300 HORSEPOWER
10225121: 350 CUBIC INCH, 405 HORSEPOWER (LEFT HAND)
10225122: 350 CUBIC INCH, 405 HORSEPOWER (RIGHT HAND)

1995 Corvette Powertrain Specifications

Engine (Coupe/Convertible)

Engine: LT1 5.7 OHV 350 V-8. Multi-Port Fuel Injection
Cylinders: V8
Block Material:
Cast Iron Alloy
Displacement: 5.7 Litre/350 Cubic Inches
Bore & Stroke: 4.00 x 3.48 inches
Valvetrain: OHV, 2 valves per cyl.
Cylinder Head Material: Aluminum
Cylinder Block Deck Height: 9.025 Inches
Compression Ratio: 10.5:1
Horsepower: 300 HP @ 5,000 RPM
Torque: 340 lb-ft @ 4,000 rpm
Fuel Delivery: Sequential-Port Fuel Injection
Fuel Capacity: 20.0 Gallons
Oil Capacity: 4.0 Quarts (Without Filter)
Total Dressed Engine Weight (Dry): 585.7lbs
Transmission: 4 Speed Auto Transmission (Standard), 6 Speed Manual Transmission (Optional)
Standard Axle Ratio: 2.59:1 (Automatic), 3.45:1 (Manual)
EST. MPG (City/Hwy): 17/27 (Manual), 17/24 (Auto)
Max Engine RPM 5,700

Engine (ZR-1)

Engine: LT5 5.7 OHV 350 V-8. Multi-Port Fuel Injection (COUPE)
Cylinders: V8
Block Material:
Aluminum*
Displacement: 5.7 Litre/350 Cubic Inches
Bore & Stroke: 3.90 x 3.66 inches
Valvetrain: Double Overhead Cam
Cylinder Head Material: Aluminum
Cylinder Block Deck Height: 9.025 Inches
Compression Ratio: 11.0:1
Horsepower: 405 HP @ 5,800 RPM
Torque: 385 lb-ft @ 5,200 rpm
Fuel Delivery: Multi-Port Fuel Injection
Fuel Capacity: 20.0 Gallons
Oil Capacity: 8.55 Quarts (Crankcase)
Total Dressed Engine Weight (Dry): 635.6 lbs (Manual), 576.4 lbs (Auto)
Transmission: 6 Speed Manual Transmission
Standard Axle Ratio: 2.59:1 (Automatic), 3.33:1 (Manual)
EST. MPG (City/Hwy): 17/25 MPG
Max Engine RPM 7,100

Transmission

6 SPEED MANUAL GEAR RATIOS  4 SPEED AUTOMATIC GEAR RATIOS
1st GEAR: 2.64:1 1st GEAR: 3.06:1
2nd GEAR: 1.78:1 2nd GEAR: 1.63:1
3rd GEAR: 1.30:1 3rd GEAR: 1.00:1
4th GEAR: 1.00:1 4th GEAR: 0.70:1
5th GEAR: 0.74:1 REVERSE: 2.29:1
6th GEAR: 0.49:1

1995 Corvette Wheels, Suspension & Brakes

Suspension (Coupe/Convertible)

Front Suspension Independent, SLA forged aluminum upper and lower control arms and steering knuckle. Transverse monoleaf spring and steel stabilizer, spindle offset.
Rear Suspension Independent 5-link design with tow and camber adjustment, forged aluminum control links and knuckle. Transverse monoleaf spring, steel tie rods and stabilizer, tubular U-jointed aluminum driveshafts.

Suspension (ZR-1)

Front Suspension Independent, SLA forged aluminum upper and lower control arms and steering knuckle. Transverse monoleaf spring and steel stabilizer, spindle offset
Rear Suspension Independent 5-link design with tow and camber adjustment, forged aluminum control links and knuckle. Transverse monoleaf spring, steele tie rods and stabilizer, tubular U-jointed aluminum driveshafts

Wheels & Tires (Coupe/Convertible)

Front Tires Goodyear Eagle GSC, P255/45ZR-17
Rear Tires Goodyear Eagle GSC, P285/40ZR-17
Front Wheels 17 x 8.5 Inches, 5 Bolt Cast Aluminum
Front Wheels 17 x 9.5 Inches, 5 Bolt Cast Aluminum

Wheels & Tires (ZR-1)

Front Tires Goodyear Eagle GSC, P275/40ZR-17
Rear Tires Goodyear Eagle GSC, P315/35ZR-17
Front Wheels 17 x 9.5 Inches, 5 Bolt Cast Aluminum
Front Wheels 17 x 11 Inches, 5 Bolt Cast Aluminum

Brakes (Coupe/Convertible)

Type ABS Power-Assist Vented Brakes
Front Brakes 13.0 Inches
Rear Brakes 12.0 Inches

Brakes (ZR-1)

Type ABS Power-Assist Vented Brakes
Front Brakes 13.0 Inches
Rear Brakes 13.0 Inches

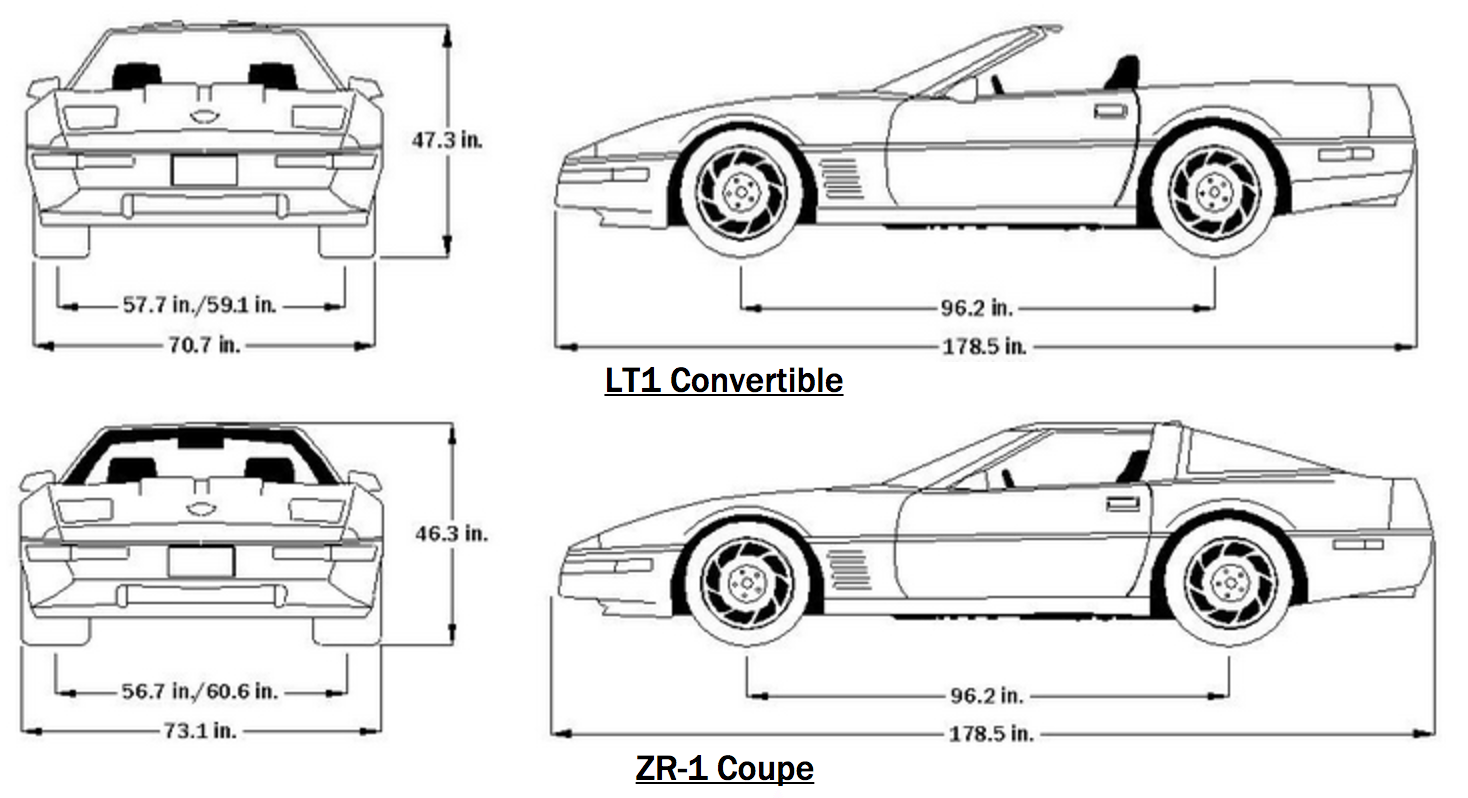

1995 Corvette Exterior Dimensions

Coupe Dimensions

1995 Corvette Dimension

Exterior Dimensions

Exterior Dimensions
Model LT1 Coupe LT1 Convertible ZR-1 Coupe
Wheelbase 96.2 Inches 96.2 Inches 96.2 Inches
Overall Length 178.5 Inches 178.5 Inches 178.5 Inches
Total Body Width 70.7 Inches 70.7 Inches 73.1 Inches
Overall Height 46.3 Inches 47.3 Inches 46.3 Inches
Front Track Width 57.7 Inches 57.7 Inches 56.7 Inches
Rear Track Width 59.1 Inches 59.1 Inches 60.6 Inches

Interior Dimensions

Interior Dimensions
Model LT1 Coupe LT1 Convertible ZR-1 Coupe
Headroom 36.4 Inches 36.5 Inches 36.4 Inches
Shoulder Room 54.1 Inches 54.1 Inches 54.0 Inches
Hip Room 49.3 Inches 49.3 Inches 49.3 Inches
Leg Room 42.6 Inches 42.6 Inches 42.6 Inches

Capacities

Capacities
Model LT1 Coupe LT1 Convertible ZR-1 Coupe
Passenger Capacity 2 – Driver & Passenger 2 – Driver & Passenger 2 – Driver & Passenger
Curb Weight – Automatic (LBS) 3,203 3,360 N/A
Curb Weight – Manual (LBS) N/A N/A 3,512
Cargo Volume (CU.FT) 12.6 Cubic Feet 6.6 Cubic Feet 12.6 Cubic Feet
Fuel Capacity (GALLONS/LITERS) 20.0/76.0 20.0/76.0 20.0/76.0
Engine Oil Capacity (QTS./LITERS) 4.5 4.5 9.6
Coolant Capacity (QTS./LITERS) 17.8 17.8 14.7
Coefficient of Drag N/A N/A N/A
Weight Dist. Front/Rear (%) 51.5/48.5 N/A N/A

1995 Corvette

1995 Corvette Performance Results

Model LT1 Coupe LT1 Convertible ZR-1 Coupe
0-30 MPH: N/A N/A N/A
0-60 MPH: 5.4 Seconds N/A 5.2 Seconds
0-100 MPH: N/A N/A 10.3 Seconds
QUARTER MILE: 14.0 Sec N/A 13.6 Sec
TOP SPEED (MPH): N/A N/A 179
