1970 Corvette Specifications

1970 Corvette Main Specs

MODEL: 1970 Chevrolet Corvette
BODY STYLE: Two-door convertible/coupe, front engine, rear wheel drive
MANUFACTURING LOCATION: St. Louis, Missouri
CONSTRUCTION: Uniconstruction: fiberglass reinforced plastic (FRP or “fiberglass”) body, backboned by a steel cage outlining the passenger compartment. Principal members – underbody, front and rear end assemblies, dash panel and hinge pillars are bonded, riveted, or bolted together and to each other. Hood is plastic with bonded plastic reinforcement. Coupe: two removable roof panels and removable rear window. Frame: all welded, full length, ladder construction with 5 crossmembers. Side Rails and intermediate crossmembers box section; front crossmember box girder section. Eight body-mounting points.
VEHICLE NUMBERS (VIN): 194370S400001 – 194370S417316
ENGINE SUFFIX: CGW: 454 CUBIC INCH, 390 HORSEPOWER, AUTOMATIC TRANSMISSION
CRJ: 454 CUBIC INCH, 390 HORSEPOWER, AUTOMATIC TRANSMISSION, TRANSISTOR IGNITION
CRI: 454 CUBIC INCH, 390 HORSEPOWER, MANUAL TRANSMISSION, TRANSISTOR IGNITION
CTD: 350 CUBIC INCH, 300 HORSEPOWER, MANUAL TRANSMISSION
CTG: 350 CUBIC INCH, 300 HORSEPOWER, AUTOMATIC TRANSMISSION
CTH: 350 CUBIC INCH, 350 HORSEPOWER, MANUAL TRANSMISSION
CTJ: 350 CUBIC INCH, 350 HORSEPOWER, MANUAL TRANSMISSION, AIR CONDITION
CTK: 350 CUBIC INCH, 370 HORSEPOWER, MANUAL TRANSMISSION, TRANSISTOR IGNITION
CTL: 350 CUBIC INCH, 300 HORSEPOWER, MANUAL TRANSMISSION
CTM: 350 CUBIC INCH, 300 HORSEPOWER, AUTOMATIC TRANSMMISSION
CTN: 350 CUBIC INCH, 350 HORSEPOWER, MANUAL TRANSMMISSION
CTO: 350 CUBIC INCH, 350 HORSEPOWER, MANUAL TRANSMMISSION,AIR CONDITIONING
CTP: 350 CUBIC INCH, 350 HORSEPOWER, MANUAL TRANSMMISSION, TRANSISTOR IGNITION
CTQ: 350 CUBIC INCH, 350 HORSEPOWER, MANUAL TRANSMMISSION, AIR CONDITIONING, TRANSISTOR IGNITION
CTR: 350 CUBIC INCH, 370 HORSEPOWER, MANUAL TRANSMMISSION, TRANSISTOR IGNITION
CTU: 350 CUBIC INCH, 370 HORSEPOWER, MANUAL TRANSMMISSION, TRANSISTOR IGNITION
CTV: 350 CUBIC INCH, 370 HORSEPOWER (ZR1), MANUAL TRANSMMISSION
CZU: 454 CUBIC INCH, 390 HORSEPOWER, MANUAL TRANSMMISSION
ENGINE BLOCK NUMBER: 3970010, 350 CUBIC INCH, 300 HP, 350HP, 370HP
3963512, 454 CUBIC INCH, 390 HP
HEAD NUMBER: 3927186, 350 CUBIC INCH, 300HP, 350HP, 370HP
3927187, 350 CUBIC INCH, 350HP
3964290, 454 CUBIC INCH, 390HP
3973414, 350 CUBIC INCH, 370HP
CARBURETOR NUMBERS: ROCHESTER Q-jet #7040202: 350 CUBIC INCH, 300HP, AUTO
ROCHESTER Q-jet #7040203: 350 CUBIC INCH, 300HP, MANUAL
ROCHESTER Q-jet #7040204: 454 CUBIC INCH, 390HP, AUTO
ROCHESTER Q-jet #7040205: 454 CUBIC INCH, 390HP, MANUAL
ROCHESTER Q-jet #7040207: 350 CUBIC INCH, 350HP, MANUAL
ROCHESTER Q-jet #7040212: 350 CUBIC INCH, 300HP, AUTO
ROCHESTER Q-jet #7040213: 350 CUBIC INCH, 300HP, MANUAL
ROCHESTER Q-jet #7040502: 350 CUBIC INCH, 300HP, AUTO
ROCHESTER Q-jet #7040503: 350 CUBIC INCH, 300HP, MANUAL
ROCHESTER Q-jet #7040504: 454 CUBIC INCH, 390HP, AUTO
ROCHESTER Q-jet #7040505: 454 CUBIC INCH, 390HP, MANUAL
ROCHESTER Q-jet #7040507: 350 CUBIC INCH, 350HP, MANUAL
ROCHESTER Q-jet #7040513: 350 CUBIC INCH, 300HP, MANUAL
HOLLEY R4489A #3972123: 350 CUBIC INCH, 370HP, MANUAL
HOLLEY R4555A #3972121: 350 CUBIC INCH, 370HP, MANUAL
DISTRIBUTOR NUMBER: 1111464: 454 CUBIC INCH, 390HP
1111490: 350 CUBIC INCH, 300HP
1111491: 350 CUBIC INCH, 370HP, TRANSISTOR IGNITION
1111493: 350 CUBIC INCH, 350HP
1112020: 350 CUBIC INCH, 300HP
1112021: 350 CUBIC INCH, 350HP
ALTERNATOR NUMBER: 1100825: 350 CUBIC INCH, 370HP
1100833: 350 CUBIC INCH 350HP, 454 CUBIC INCH 390HP
1100859: 350 CUBIC INCH, 300HP
AXLE IDENTIFICATION NUMBER CAK: 3.36:1 RATIO
CAL: 3.08:1 RATIO
CAN: 3.55:1 RATIO
CAP: 4.11:1 RATIO
CAS: 3.70:1 RATIO
CAV: 3.08:1 RATIO
CAW: 3.08:1 RATIO
CLR: 3.36:1 RATIO
POSITRACTION AXLE:
CAM: 3.36:1 RATIO
CAO: 3.70:1 RATIO
CAT: 3.08:1 RATIO, HEAVY DUTY
CAU: 3.36:1, HEAVY DUTY
CAX: 3.36:1, HEAVY DUTY
CAY: 2.73:1 RATIO, TURBO HYDRA-MATIC TRANSMISSION
CAZ: 3.55:1 RATIO, HEAVY DUTY
CFA: 3.70:1 RATIO
CFB: 4.11:1 RATIO, HEAVY DUTY
CFC: 4.56:1, HEAVY DUTY
PRODUCTION ENDING VEHICLE: JANUARY 1979:402261, FEBRUARY 1970: 405183, MARCH. 1970: 407977, APRIL. 1970: 408314, MAY 1970: 410652, JUNE 1970: 413829, JULY 1970: 417316

1970 Corvette Powertrain Specifications

Order Code Standard L46 LT1
Manufacturing Location Flint, Michigan Flint, Michigan Flint, Michigan
Type 90 degree V, Valve-In-Head 90 degree V, Valve-In-Head 90 degree V, Valve-In-Head
Cylinders 8 8 8
Displacement (cid) 350 350 350
Fuel Induction System 4-Barrel Carburetor 4-Barrel Carburetor 4-Barrel Carburetor
Horsepower 300 @ 4,800 350 @ 5,600 370 @ 6,000
Torque 380 @ 3,200 380 @ 3,600 380 @ 4,000
Bore x Stroke (in.) 4.00 x 3.48 4.00 x 3.48 4.00 x 3.48
Compression Ratio 10.0:1 11.0:1 11.0:1
Firing Order 1-8-4-3-6-5-7-2 1-8-4-3-6-5-7-2 1-8-4-3-6-5-7-2
Cylinder Number System (Left) 1-3-5-7 1-3-5-7 1-3-5-7
Cylinder Number System (Right) 2-4-6-8 2-4-6-8 2-4-6-8
Recommended Fuel Premium Premium Premium
Order Code LS5 LS7
Manufacturing Location Flint, Michigan Flint, Michigan
Type 90 degree V, Valve-In-Head 90 degree V, Valve-In-Head
Cylinders 8 8
Displacement (cid) 454 454
Fuel Induction System 4-Barrel Carburetor 4-Barrel Carburetor
Horsepower 390 @ 4,800 460 @ 5,600
Torque 500 @ 3,400 490 @ 3,600
Bore x Stroke (in.) 4.251 x 4.00 4.251 x 4.00
Compression Ratio 10.25:1 11.25:1
Firing Order 1-8-4-3-6-5-7-2 1-8-4-3-6-5-7-2
Cylinder Number System (Left) 1-3-5-7 1-3-5-7
Cylinder Number System (Right) 2-4-6-8 2-4-6-8
Recommended Fuel Premium Premium

1970 Corvette Manual Transmission/Gear Ratios

Manual Transmission

Gear Ratios
4-Speed (RPO M20)
4-Speed Close Ratio (RPO M21)
4-Speed Heavy Duty (RPO M22)
1st Gear:
2.52:1
2.20:1
2.20:1
2nd Gear:
1.88:1
1.64:1
1.64:1
3rd Gear:
1.46:1
1.27:1
1.27:1
4th Gear:
1.00:1
1.00:1
1.00:1
Reverse:
2.59:1
2.26:1
2.26:1

Clutch

Clutch Stats
Type Single Dry Disk Centrifugal
Spring Pressure (lbs) 2450 – 2750 (2900 – 3100 Heavy Duty)
Lining area (sq. in.) 123.7 (103.53 Heavy Duty)

Turbo Hydra-Matic Automatic Transmission RPO M40/ Gear Ratios

Gear Drive L2 L1 Reverse
1st Gear 2.48:1 2.48:1 2.48:1 N/A
2nd Gear 1.48:1 1.48:1 N/A N/A
3rd Gear 1.00:1 N/A N/A N/A
Reverse N/A N/A N/A 2.08

1970 Corvette Wheels, Suspension & Brakes

Suspension – Front

Type and Description: Independent, SLA type, coil springs with center mounted shock absorbers, spherical joint steering knuckle pivots.

Front Coil Springs
Make & Type Right-hand Helix Variable rate
Material Steel Alloy
Part Number 3931823, 3931825
Spring Rate (lb. per in.) 250 (284)
Rate at Wheel (lb. per in.)
Design Load at Spring 9.99 in. @ 1395 lbs. (9.99 in. @ 1540 lbs.
Front Stabilizer Bar
Type Link
Material Hot rolled steel
Diameter .750 with 350ci engine, .9375 with 454ci engine

Suspension – Back

Type and Description: Full Independent rear suspension with frame-anchored differential unit. Position of each wheel established by three links: tubular axle drive shafts, transverse strut rods, torque control arms. Vertical suspension loads taken by transverse leaf springs. Built-in camber adjustment at strut rod inner ends.
Rear Leaf Springs
Number of Leaves 9
Material Chrome carbon steel
Length, width, height 46.36 x 2.25 x 2.121
Rear Shock Absorbers:
Type Direct, double-acting, hydraulic
Piston Diameter 1.00
Rear Strut
Material Forged Steel
Diameter 0.75

Brakes

Brake Specs
Type:
– Standard Caliper Disk – 4 Wheel Hydraulic
– J50 Delco-Moraine Vacuum Assisted Powered Brakes
Drum diameter, front (in.): 11.75 x 1.25
Drum diameter, rear (in.): 11.75 x 1.25
Swept Drum Area Effective area: 461.2

Wheels & Tires

Wheels & Tires Specs
Wheel Type:
– Standard Short spoke spider, welded steel
Wheels, size:
– Standard 15″ x 8.00
Tire, size:
– Standard F70 x 15 — 4 PR. 2-Ply Tubeless Nylon
– PT6 F70 x 15 — 4 PR, 2-Ply Red Stripe Nylon
– PT7 F70 x 15 — 4 PR, 2-Ply White Stripe Nylon
Inflation (cold)
– Front 24 lbs.
– Rear 24 lbs.

Steering

Steering Specs – Manual Steering
Type Semi-reversible gear with ball-nut driven by recirculating anti-friction bearings, energy-absorbing steering column, steering damper attached to relay rod; two position steering knuckle arm attachment for street and fast ratio steering. Adjustable steering column available optionally.
Make Saginaw
Ratio (Street) 20.2:1
Ratio (Fast) 17.6:1
Wheel Diameter (in.) 16
Turns, Stop to Stop
– Street 3.4
– Fast 2.92
Turning Diameter 37 ft. (outside front), 39 ft. (outside front)



Steering Specs – Power Steering RPO N40
Type (Specifications are the same as Manual Steering except the following):
Description Hydraulic; pump powered cylinder assisted linkage
Gear Ratio 16:1
Overall Ratio 17.6:1
Wheel Turns (Lock to Lock) 2.92

1970 Corvette

1970 Corvette Exterior Dimensions

Hard Top Dimensions

1970 Corvette Dimensions - Hard Top

Exterior Dimensions (Hardtop) Interior Dimensions (Hardtop)
Wheelbase: 98.0 Inches Headroom: 37.1 Inches
Overall Length: 182.1 Inches Shoulder Room: 46.9 Inches
Total Body Width: 69.2 Inches Hip Room: 48.8 Inches
Overall Height: 47.9 Inches Leg Room: 43.0 Inches
Front Track Width: 58.3 Inches
Rear Track Width: 59.0 Inches
Min. Ground Clearance 4.9 Inches

Soft Top Dimensions

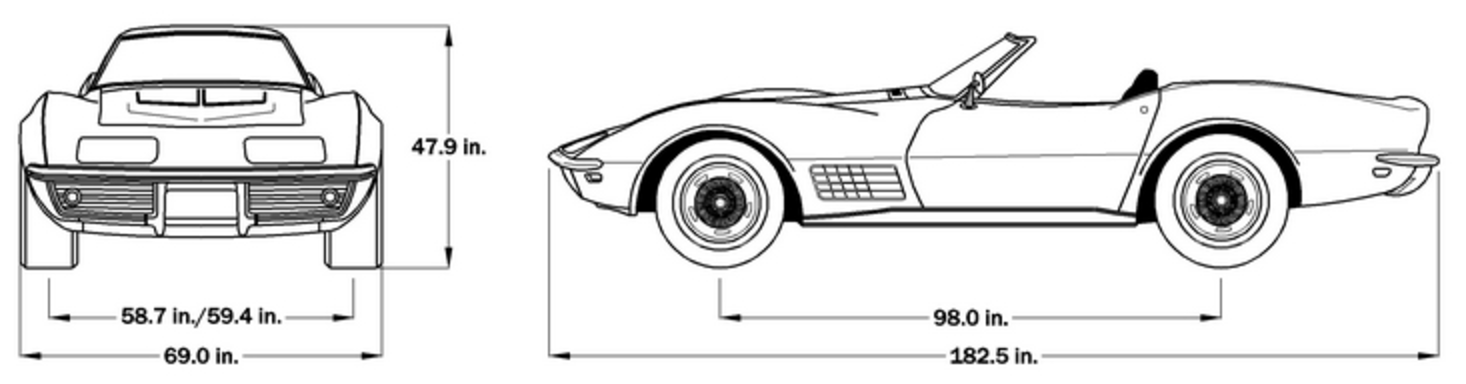

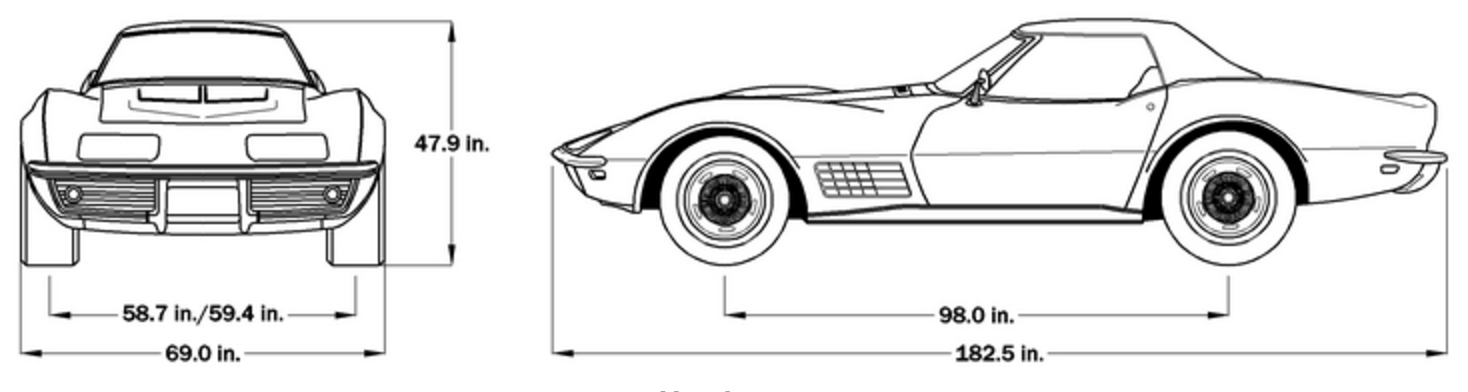

1970 Corvette Dimensions - Soft Top

Exterior Dimensions (Soft Top) Interior Dimensions (Soft Top)
Wheelbase: 98.0 Inches Headroom: 38.3 Inches
Overall Length: 182.5 Inches Shoulder Room: 46.9 Inches
Total Body Width: 69.0 Inches Hip Room: 48.8 Inches
Overall Height: 47.9 Inches Leg Room: 43.0 Inches
Front Track Width: 58.7 Inches
Rear Track Width: 59.4 Inches
Min. Ground Clearance 4.9 Inches

Coupe Dimensions

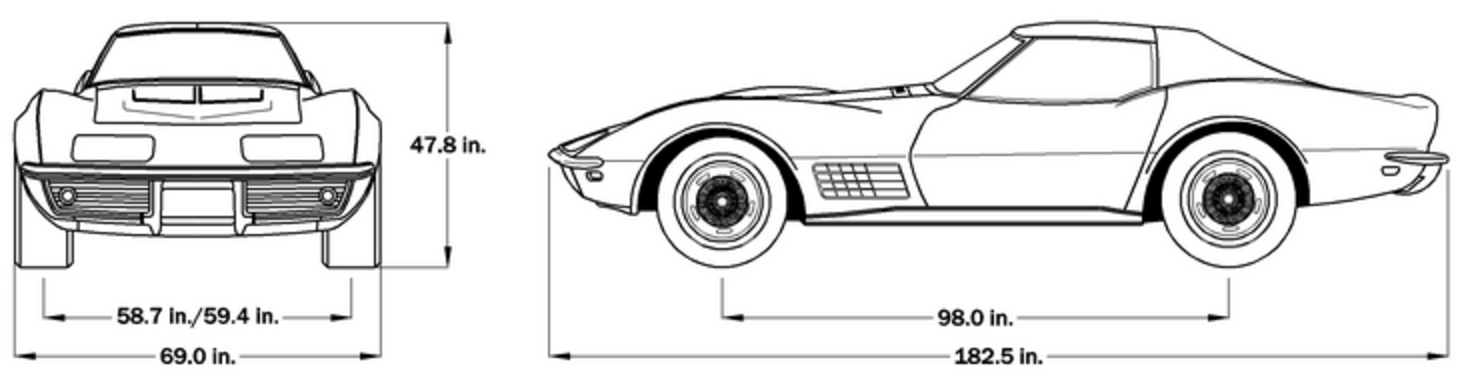

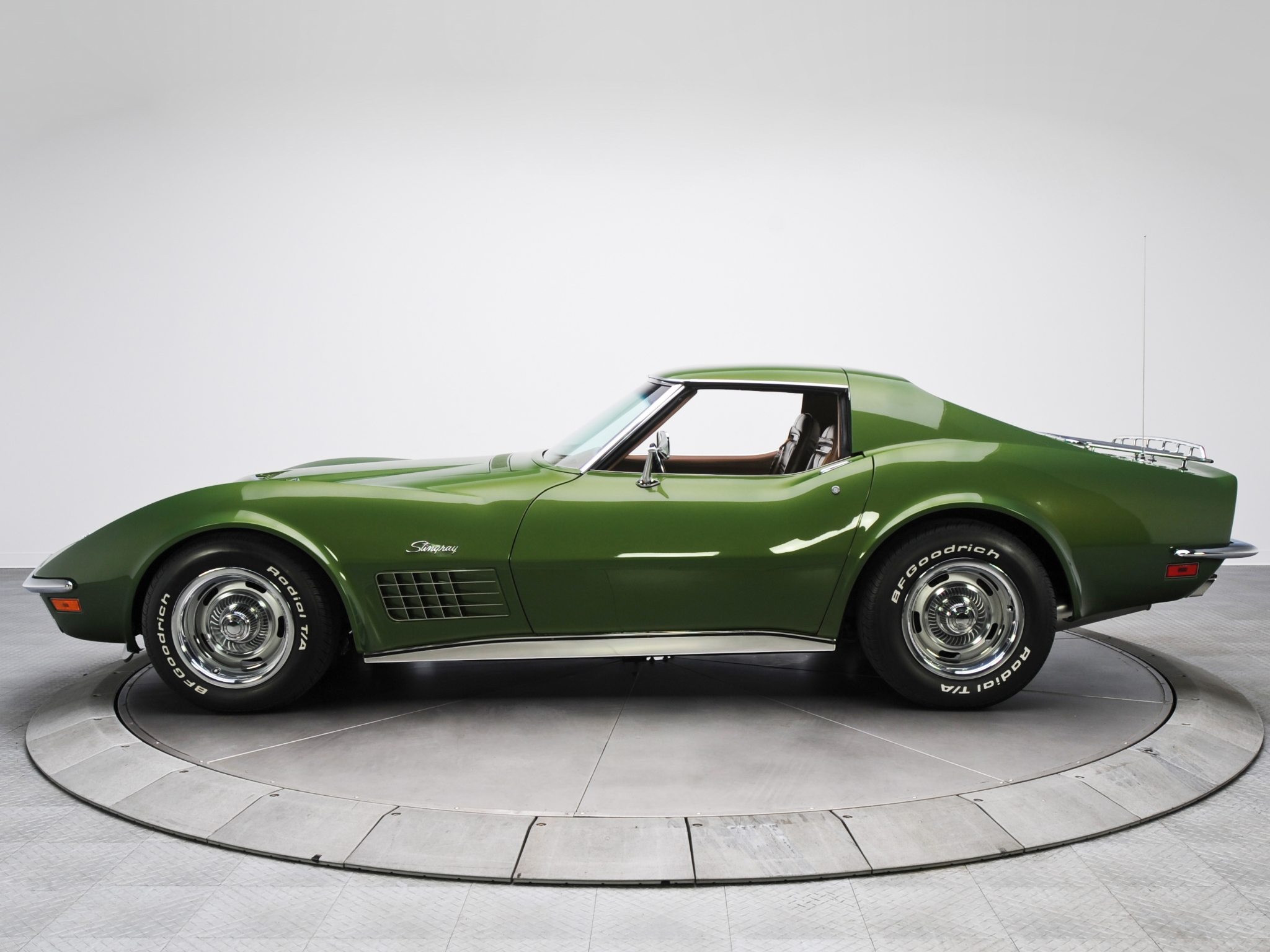

1970 Corvette Dimensions - Coupe

Exterior Dimensions (Coupe) Interior Dimensions (Coupe)
Wheelbase: 98.0 Inches Headroom: 37.2 Inches
Overall Length: 182.1 Inches Shoulder Room: 46.9 Inches
Total Body Width: 69.0 Inches Hip Room: 48.8 Inches
Overall Height: 47.8 Inches Leg Room: 43.0 Inches
Front Track Width: 58.7 Inches
Rear Track Width: 59.4 Inches
Min. Ground Clearance 4.9 Inches

Capacities

Capacities
Passenger Capacity 2 – Driver & Passenger
Curb Weight (lbs) 3,304
– Convertible with soft top
– Convertible; C07 with folding top
– Convertible; C07 less folding top
Coupe
3,290
Interior Passenger Volume (cu. ft)
Interior Trunk Volume (cu. ft) 20
Fuel Capacity (gallons): 4.0 for 350ci. engines (capacity of crankcase less filter – refill)
5.0 for 454ci engines (capacity of crankcase less filter – refill)
Coolant capacity without heater (qts.) 18 for RPO LT1 engine
22 for LS5 engine
Battery: 12 Volt, 62AH for 350ci. engines
12 Volt, 80AH for 454ci. engines

1970 Corvette

1970 Corvette Performance Results

4-Speed Transmission
Standard
L46 LT1 LS5 LS7
Performance weight (lbs.)
3586 3597 3577 3768 3641
Pounds/gross horsepower
11.95 10.28 9.67 9.66 7.91
Pounds/cu.in. piston displacement
10.25 10.28 10.22 8.30 8.02
Gross horsepower/cu.in. displacement
.857 1.00 1.06 8.59
1.01
Power displacement (cu.ft./mile)
262.69 262.69 277.55 312.36 340.75
Displacement factor (cu.ft./mile)
146.51 146.06 155.19 165.79 170.38
0 – 60 mph (seconds)
6.7
Top Speed (mph)
120
